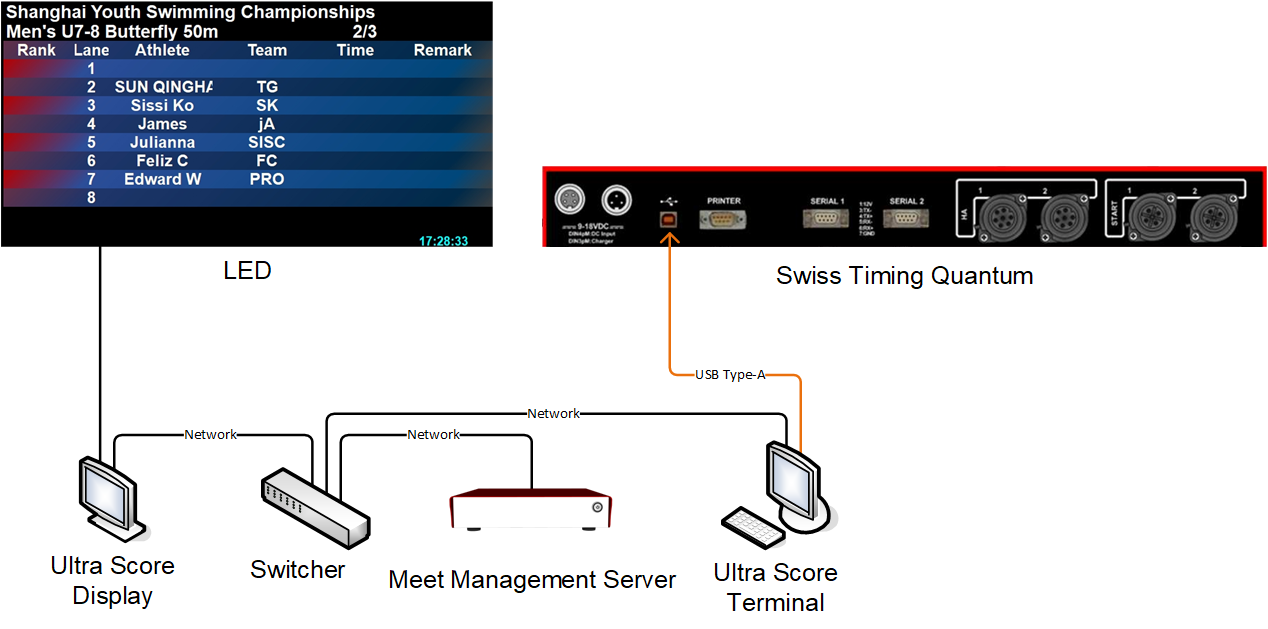

1. Connect an USB Type-A cable onto PC port of the timing console.
2. Connect the power.

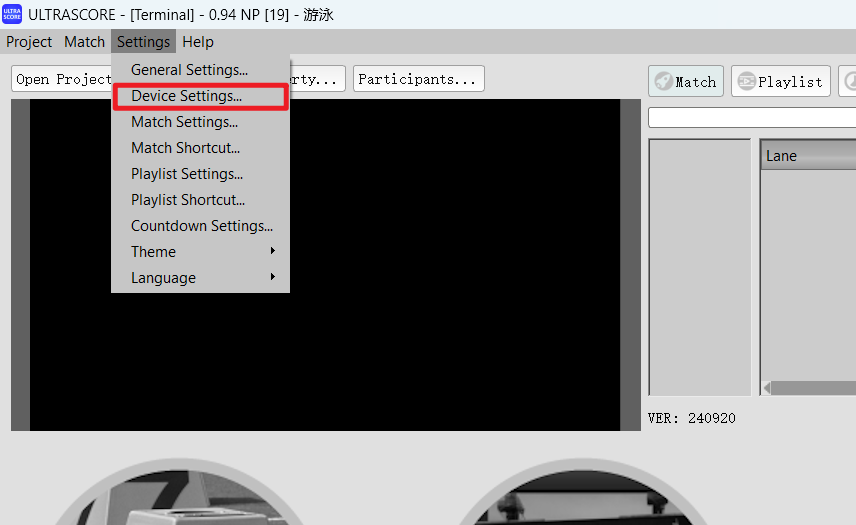

Click “settings”, then select “Device Settings”.

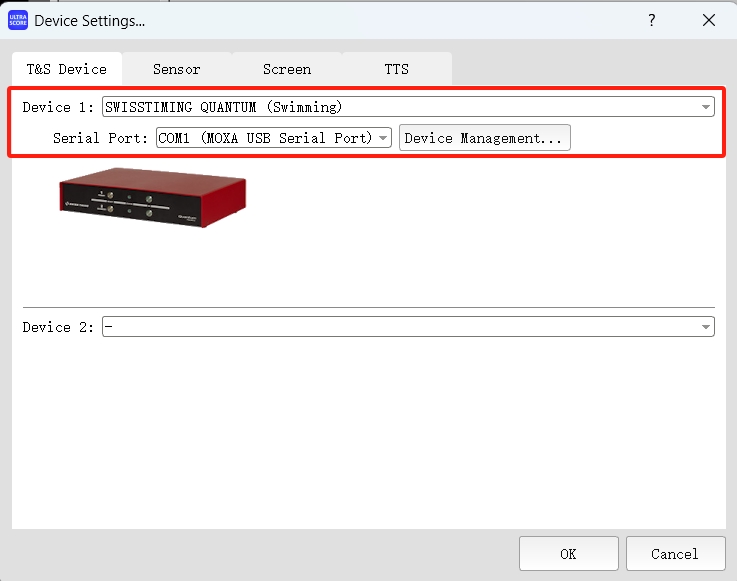

Select “SWISSTIMING QUANTUM (Swimming)” in Device 1. The system will automatically identify the serial port. Then click “OK”

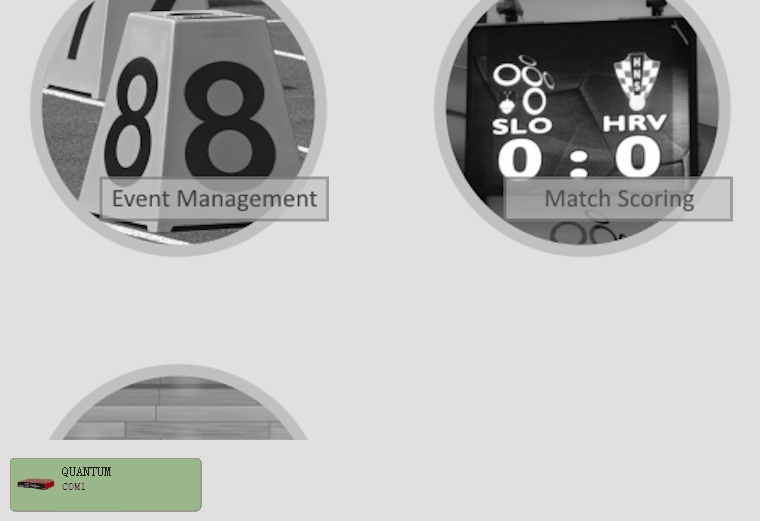

If the software establishes a correct connection with the device, the connection status bar in the lower-left corner of the screen will display with a green background color.

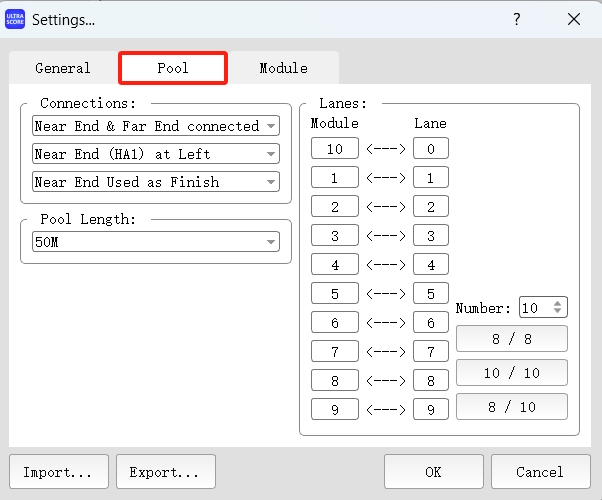

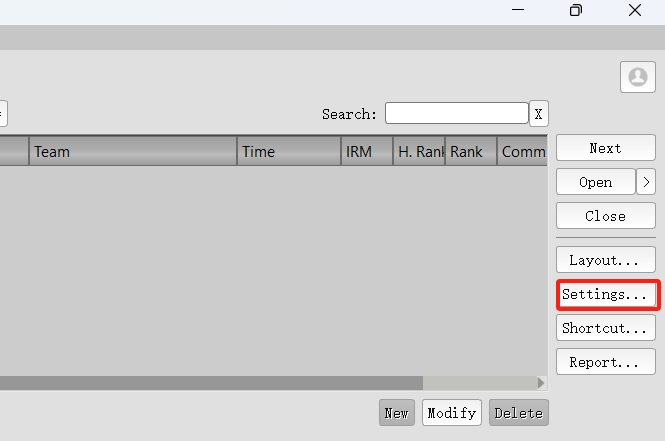

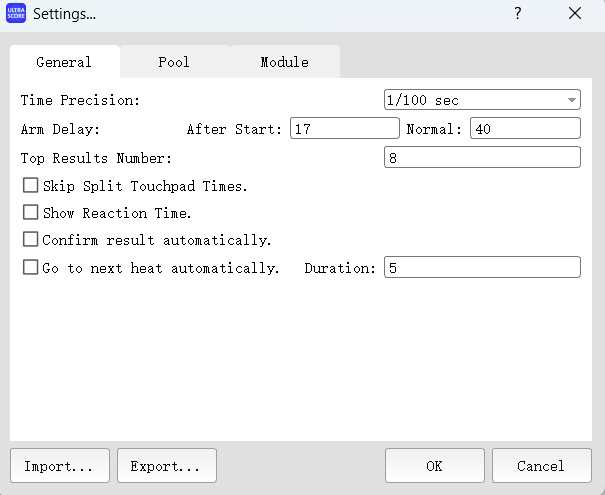

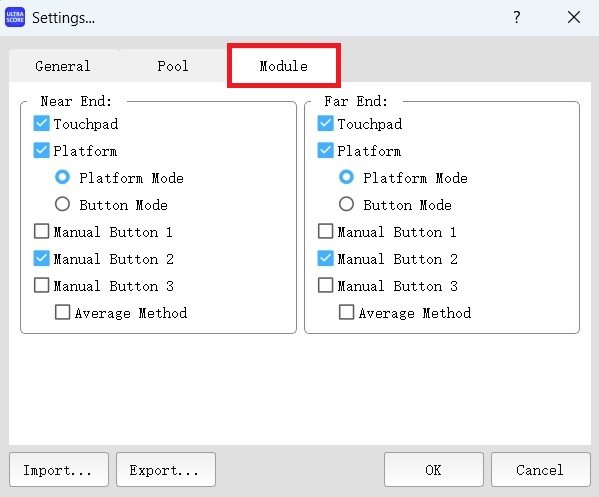

Click “settings” button to change the pool of module parameters.

Now you may use Ultra Score together with Quantum console.
