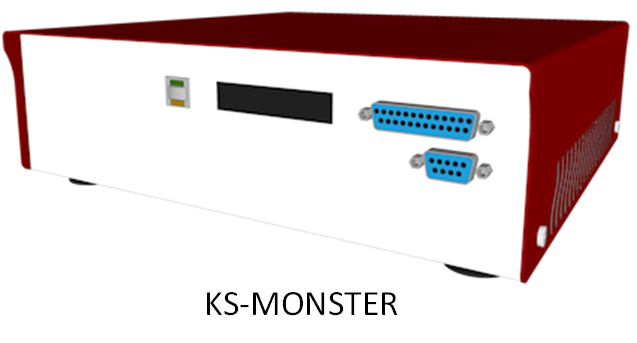

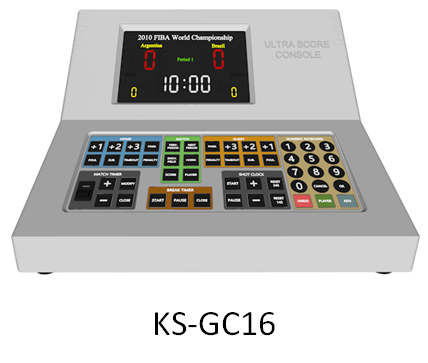

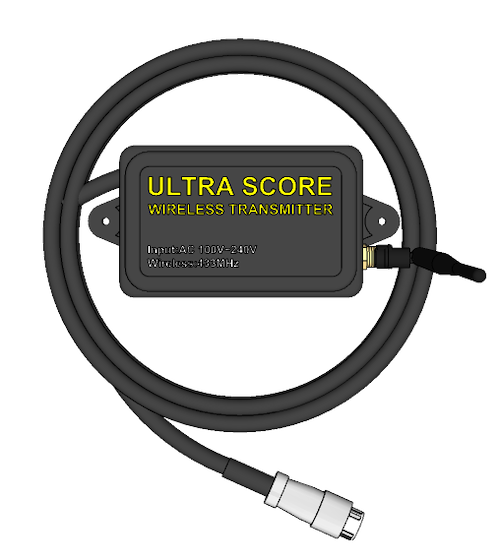

In the following table, the wireless connection device used by the console for each of the different shot clock models.

Model	Transmit		Receive	Shot Clock
	Embedded		Embedded
			Embedded
			Embedded

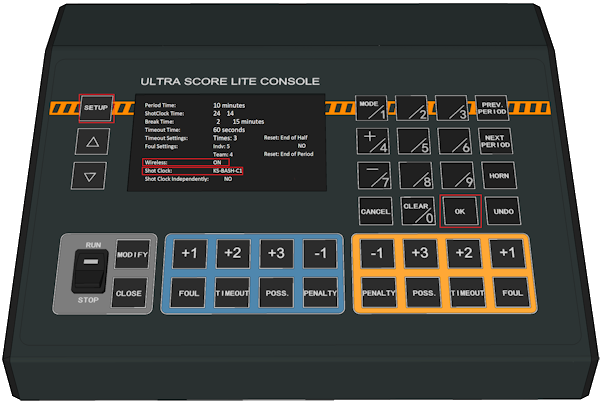

1. Open the console and press the SETUP button to enter the settings interface.
2. Use the up and down buttons on the left to navigate to the “Wireless” option, then press the “+'” button on the right to select it. Adjust the setting to “On”.
3. Next to the “Shot Clock” option using the up and down buttons, then press the “+” button on the right to select the “Shot Clock” model.
4. Finally, click the 'OK' button to confirm. After completing the settings, turn off the console and then restart it.
