Use with EuroLeague Digital Scoresheet

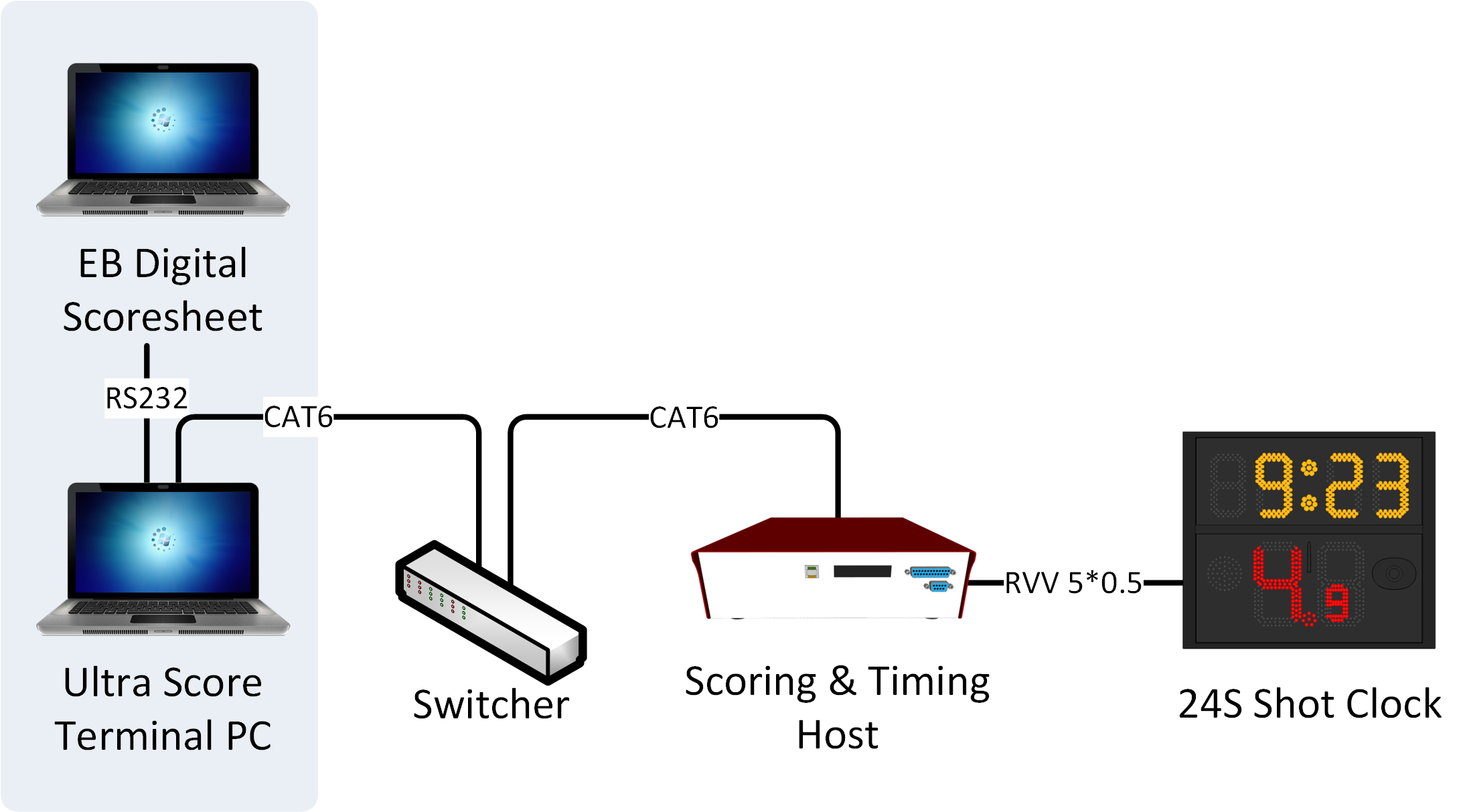

RS232 Connected Directly to The PC.
Devices with Euroleague Digital Scoresheet enabled on Ultra Score interface with EBStats software to retrieve team and player data, period information, team total points, individual player points, team fouls and individual player fouls.
Use two RS232 serial tool to connect two computers.

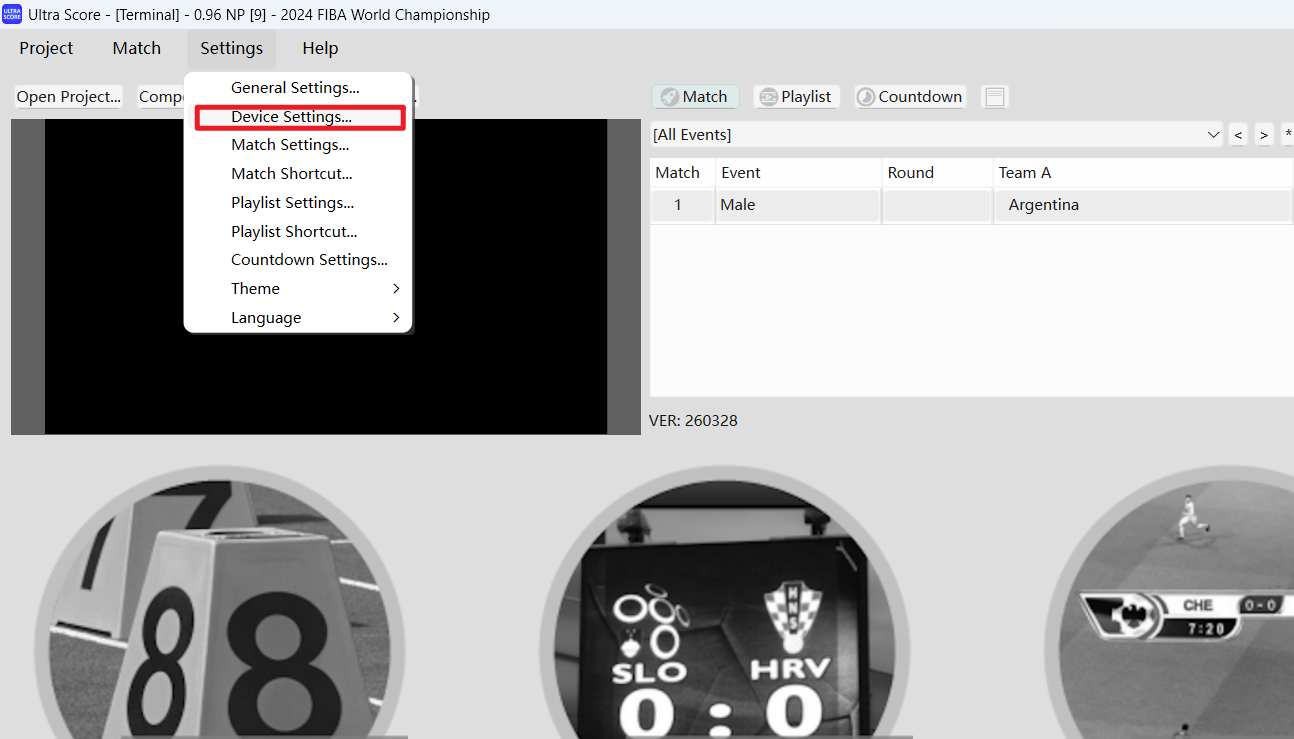

Click “settings”, then select “Device Settings”.

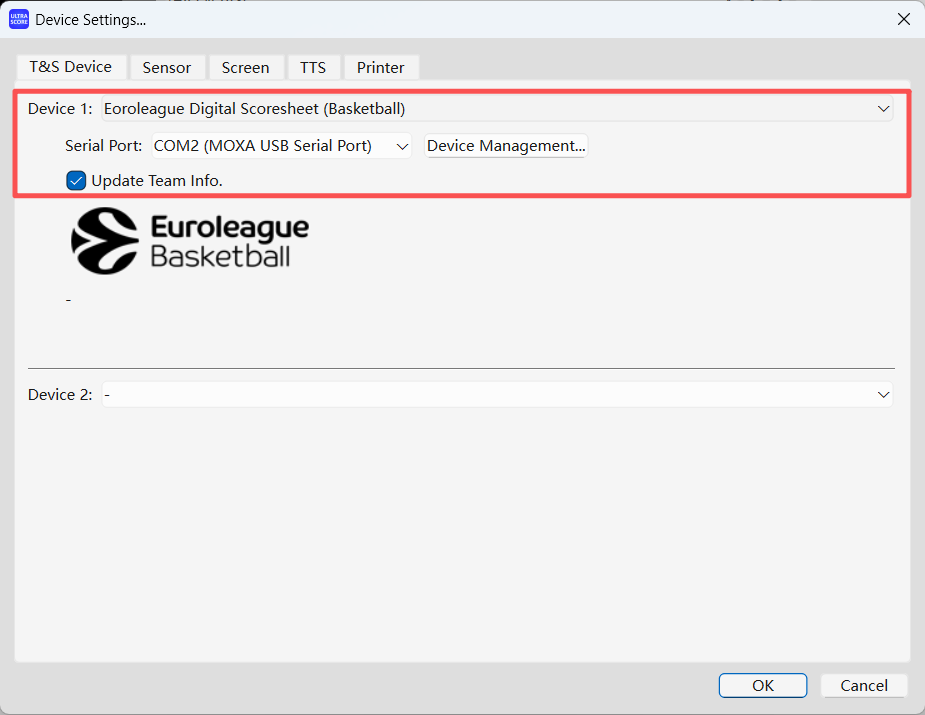

Select “EuroLeague Digital Scoresheet” in Device 1. Select the corresponding COM port. Then click “OK”.
Click “Ports” on the EBStats. Select the COM port in Console Out.
Click “settings”, then select “General Settings”. Then click “Data Out”. Check “Serialport”. Select the corresponding COM port.

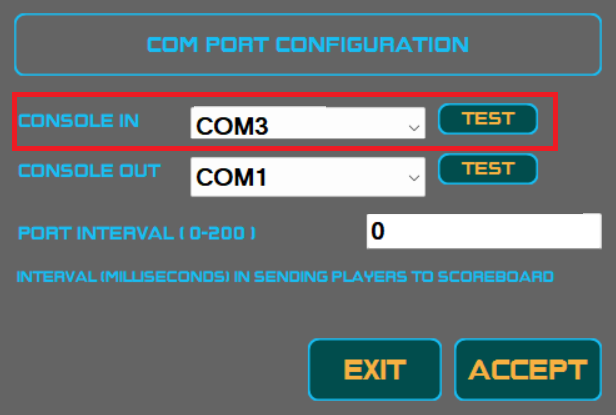

In the Euroleague Digital Scoresheet software, click Ports. In the pop-up dialog box, select the corresponding port from and Console In.

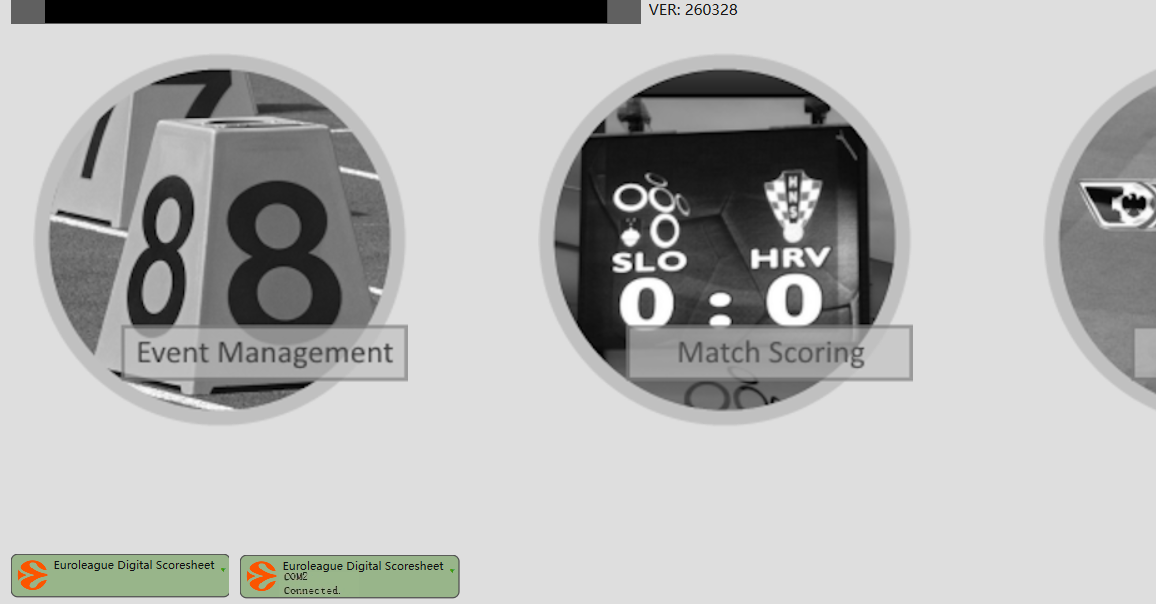

If the software establishes a correct connection with the device, the connection status bar in the lower-left corner of the screen will display with a green background color.
Then open the game on the Ultra Score and open the game on the EBStats. Now you may use Ultra Score together with EuroLeague Digital Scoresheet.

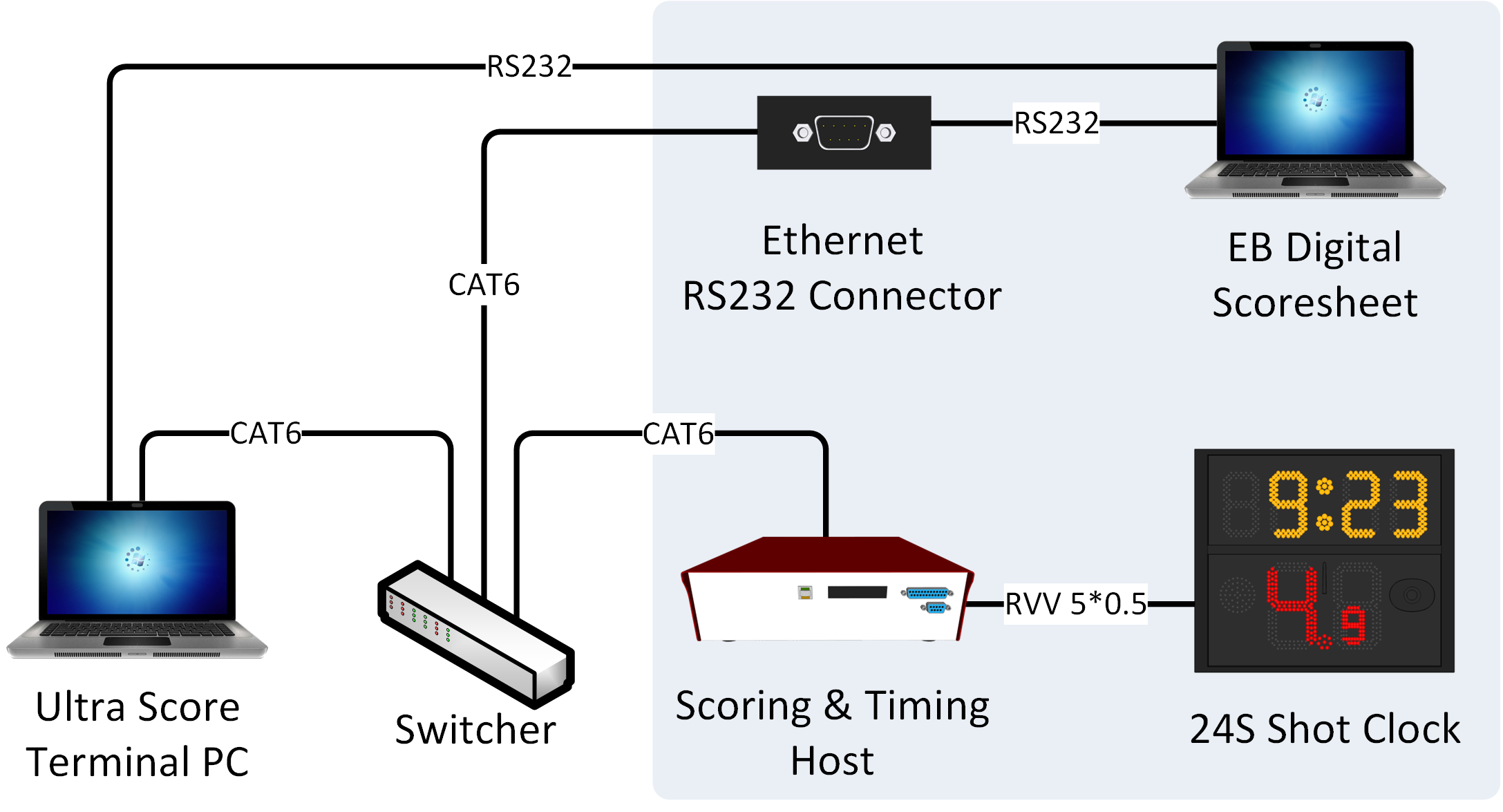

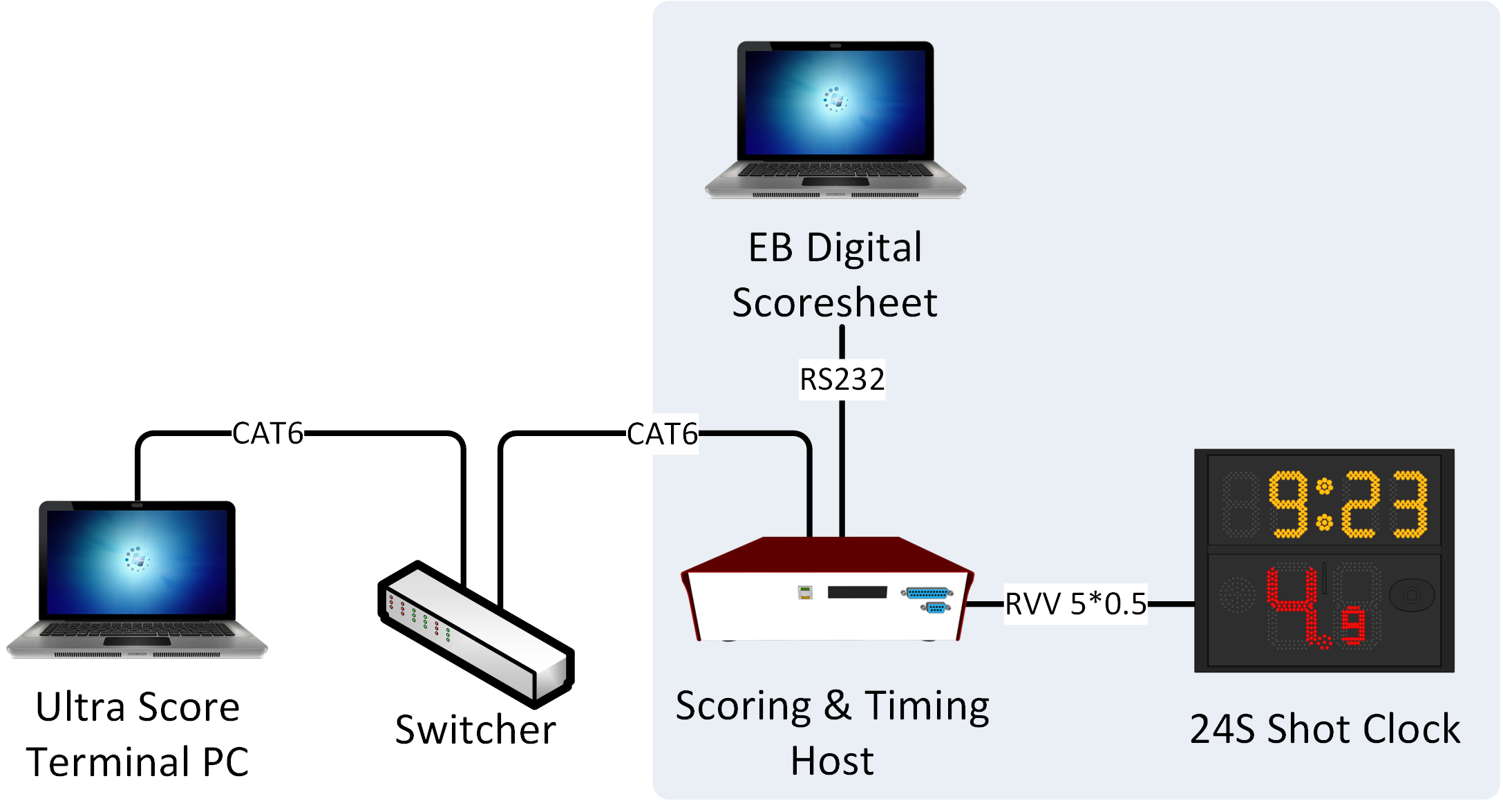

Connect Ethernet RS232 serial converter
Transmit timing signals from the Ultra Score system to the EBStats software, including game clock and shot clock.
Check the IP address located on the rear of the Ethernet-to-RS232 serial server. Connect the computer directly to the server using an Ethernet cable, then configure the computer's IP address to be in the same subnet as the server.
Click Network Settings and modify the IP address. Set it to an IP within your local area network.

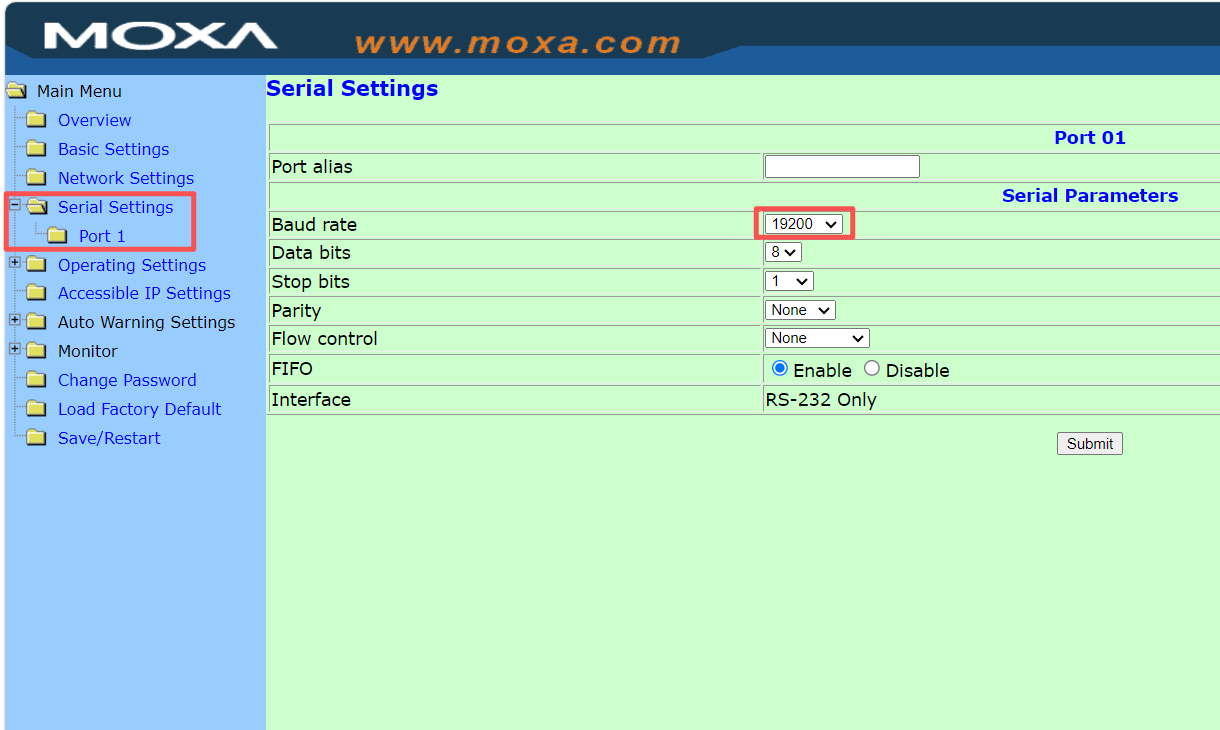

Click Port Settings and set the baud rate to 19200.

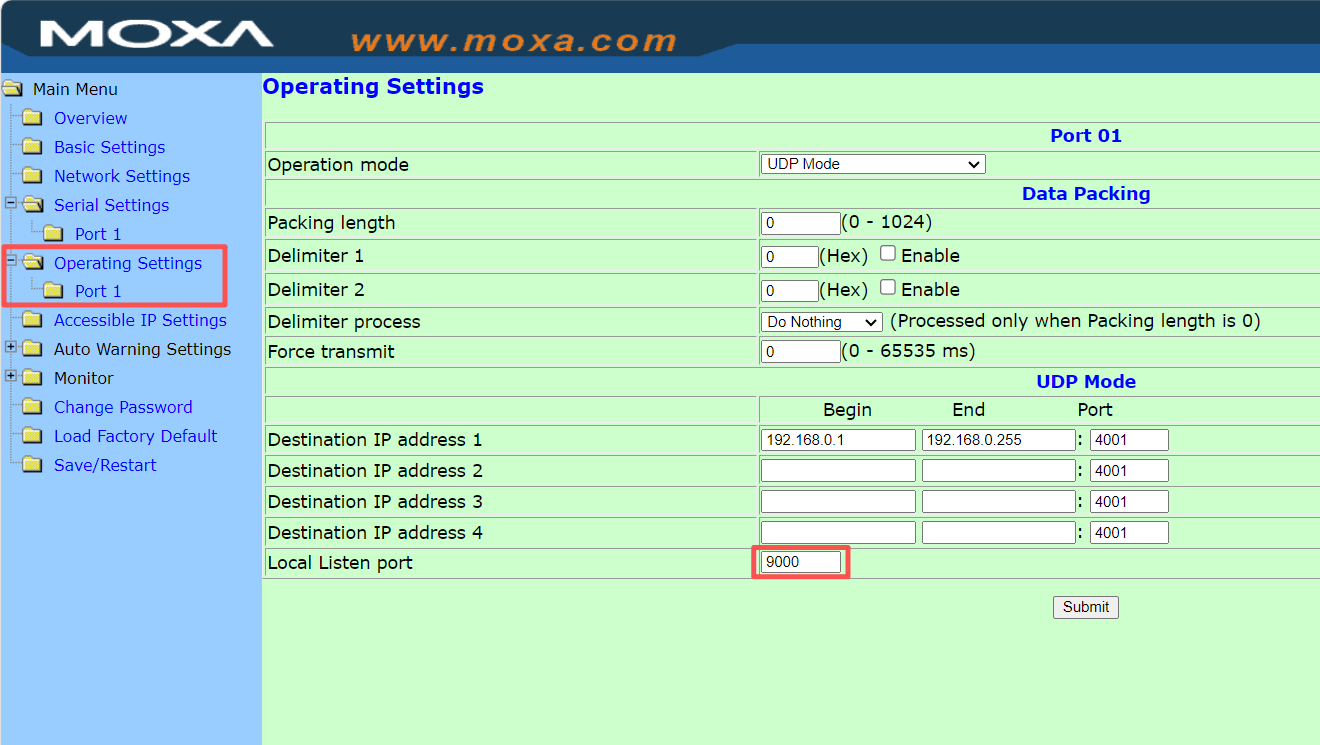

Click Operating Settings and set Local Listen port to the settings in the Ultra Score (Default Port: 9000).
Click “settings”, then select “Device Settings”.
Select “EuroLeague Digital Scoresheet” in Device 1. Select the corresponding COM port. Then click “OK”.
Click “Ports” on the EBStats. Select the COM port in Console Out.

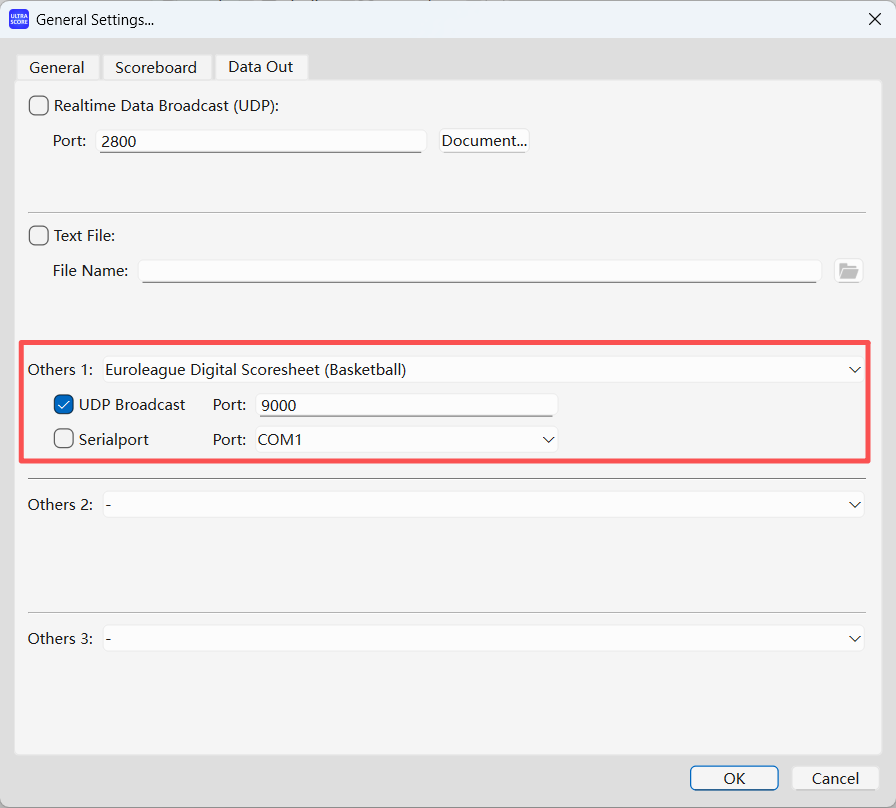

Click “settings”, then select “General Settings”. Then click “Data Out”.
Select “EuroLeague Digital Scoresheet” in Others 1. Check “UDP Broadcast” (Default UDP Port: 9000)
In the Euroleague Digital Scoresheet software, click Ports. In the pop-up dialog box, select the corresponding port from and Console In.

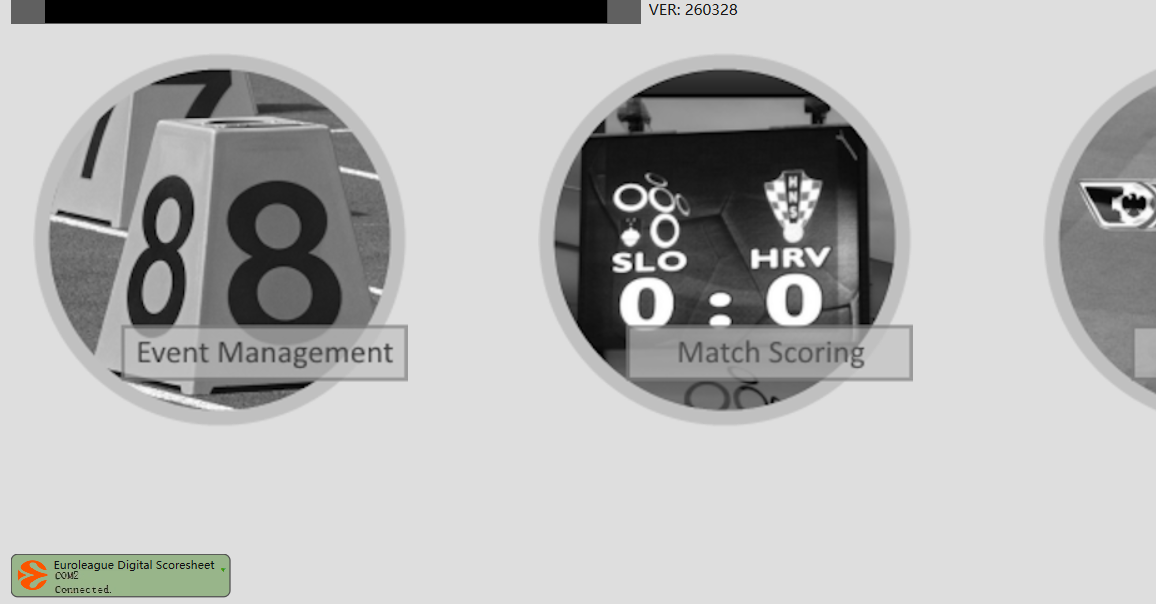

If the software establishes a correct connection with the device, the connection status bar in the lower-left corner of the screen will display with a green background color.
Connect Ethernet RS232 serial converter to KS-MONSTER
Without using software. Connect the console using the “Ethernet RS232 serial converter” port (Default UDP Port: 9001), and connect the other end to the KS-MONSTER.
Refer to the operating procedures for Connect Ethernet RS232 serial converter.
