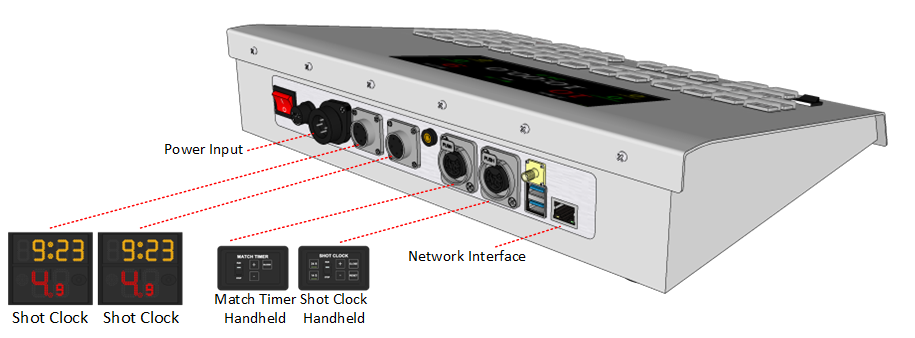

Score console KS-GC19 can work after connecting to a LAN and establishing a connection with the PC which installed Ultra Score software.
Please complete the installation of Ultra Score Software before setting up the network connection.

Factory default settings of Score Console KS-GC19:
IP：192.168.0.215 Subnet Mask: 255.255.255.0

Connect a mouse and keyboard to the USB port on the console.

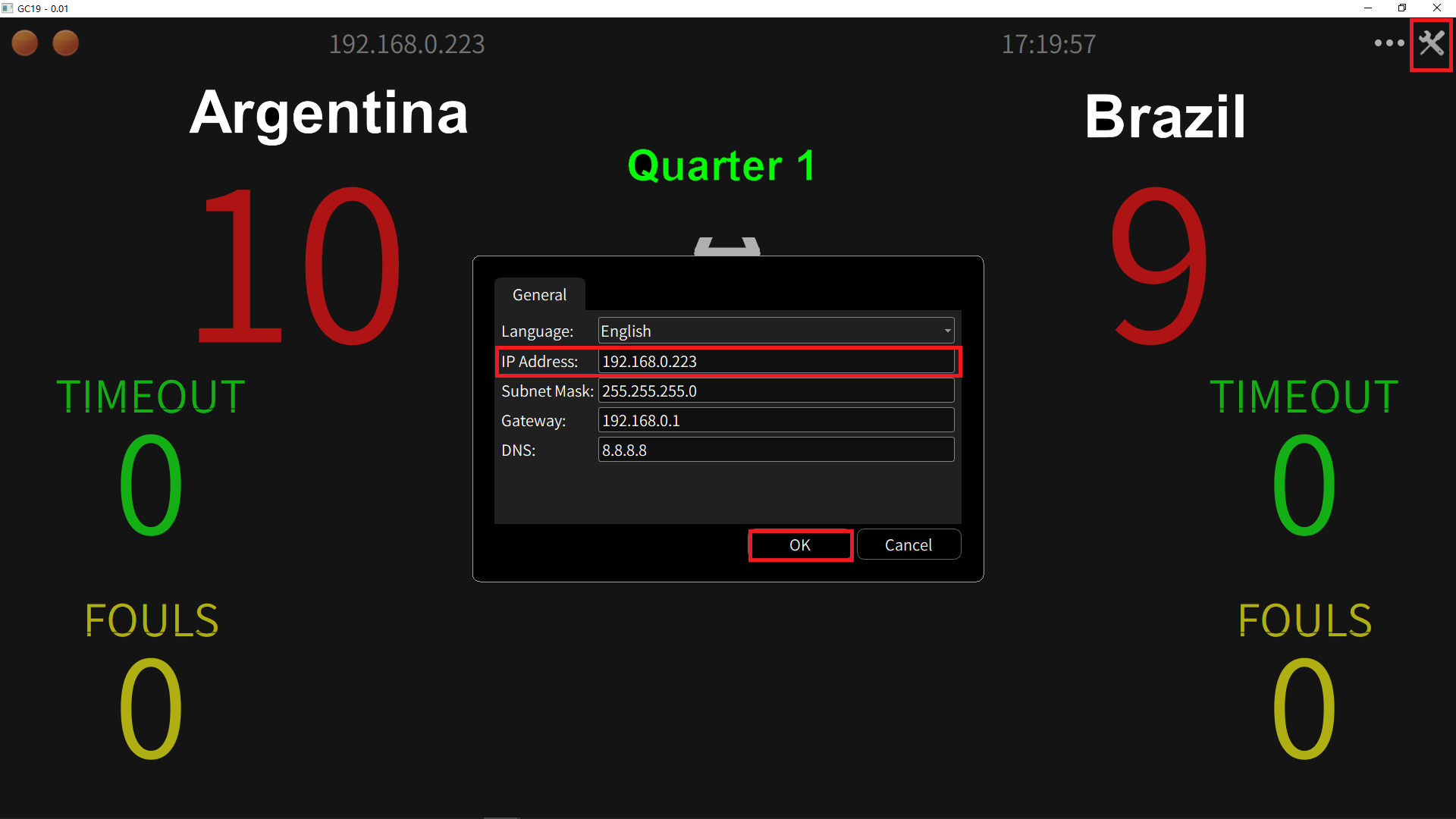

Click the wrench icon displayed on the upper right corner of the KS-GC19 screen to access and modify the IP settings.

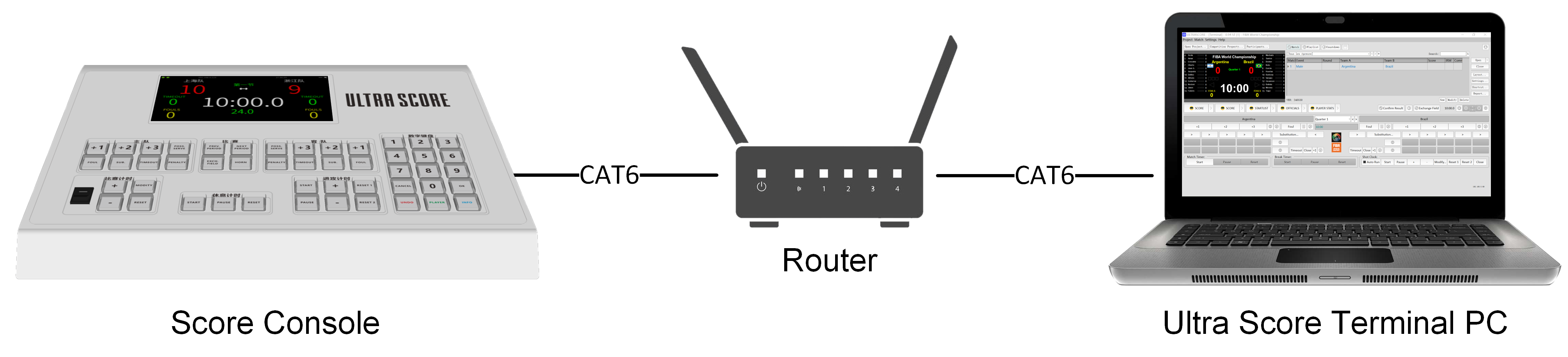

If a router is used for connection, the IP address of the PC will be in the 192.168.0.X network segment.
The PC will automatically obtain the IP address through DHCP.

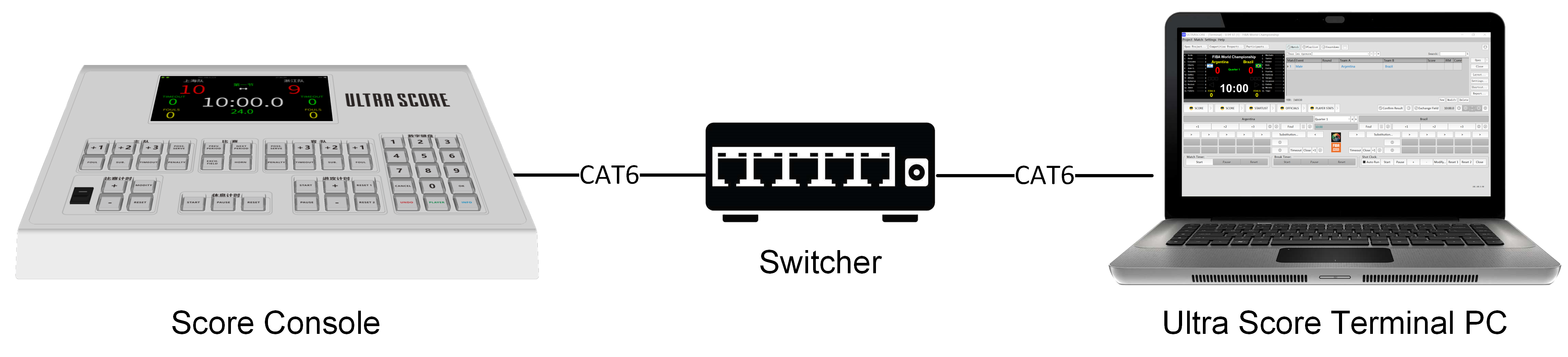

If using a switcher for connection, please go to the Ultra Score Terminal PC to complete the following settings:

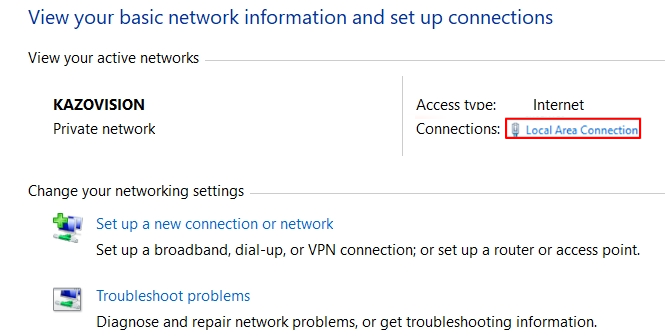

1. Click 'Start' on the desktop > 'Control Panel' > 'Network and Internet' > 'Network and Sharing Center' > 'Local Area Connection'.

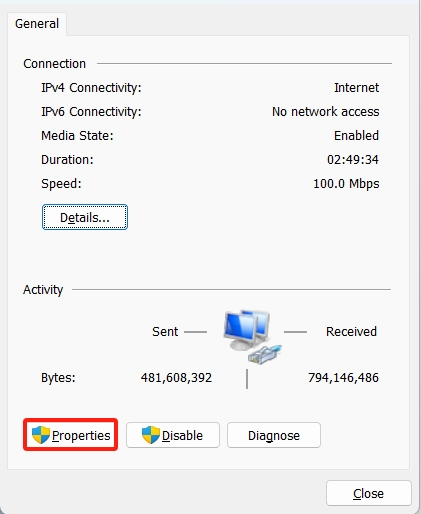

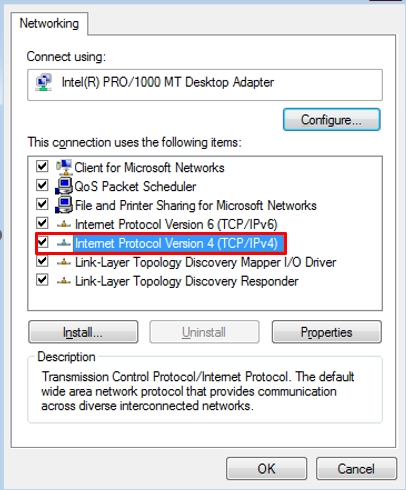

2. Click 'Properties' and then double-click to open 'Internet Protocol Version (TCP/IPv4)'.

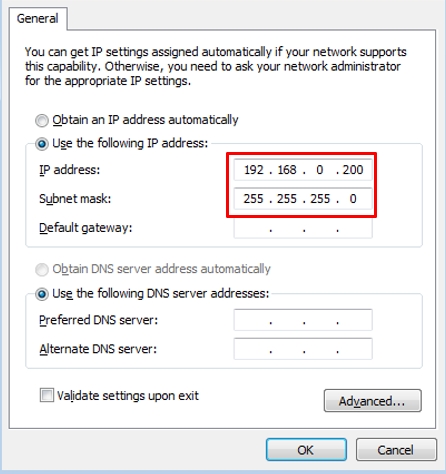

3. Select 'Use the following IP address', enter the IP address below, and then click 'OK'.
In order to distinguish the Ultra Score Terminal PC from the Score Console, the fixed IP of the PC will be set as '192.168.0.200' and the Subnet mask will be automatically set to '255.255.255.0'.

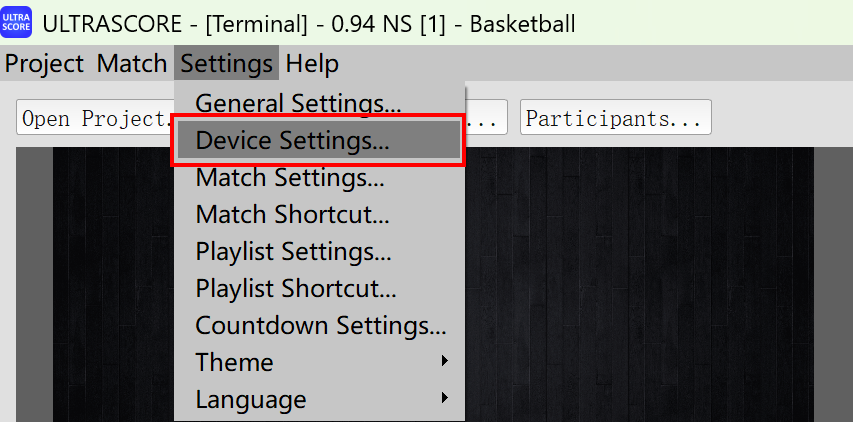

4. Open Ultra Score software, click 'Settings' > 'Device Settings'.

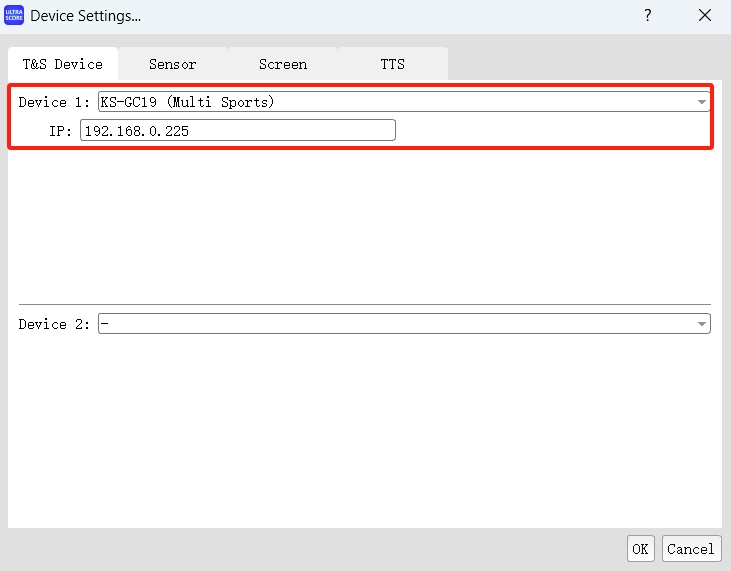

The device settings dialog box is as follows: Select device model: KS-GC19 (Multi Sports) > Enter IP address: 192.168.0.215 (default factory IP) > Click 'OK'.

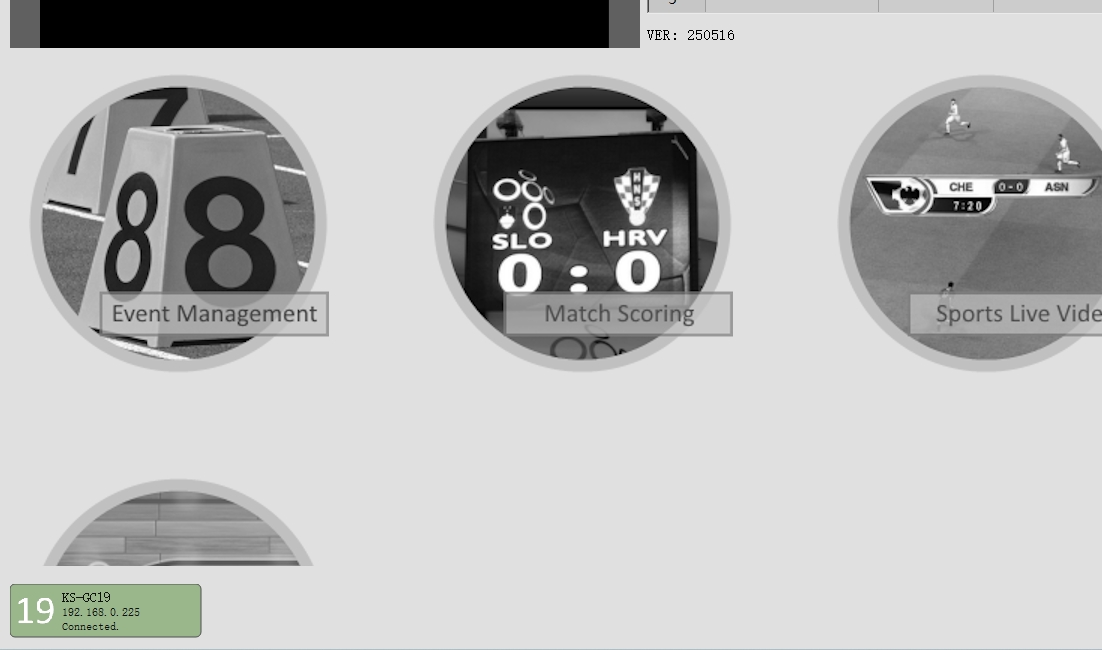

5. After the network connection is successful, the device status bar at the lower left corner of Ultra Score software shows a green connection status.

Select and open a game on Ultra score PC, and the score console panel will automatically switch to the game screen.

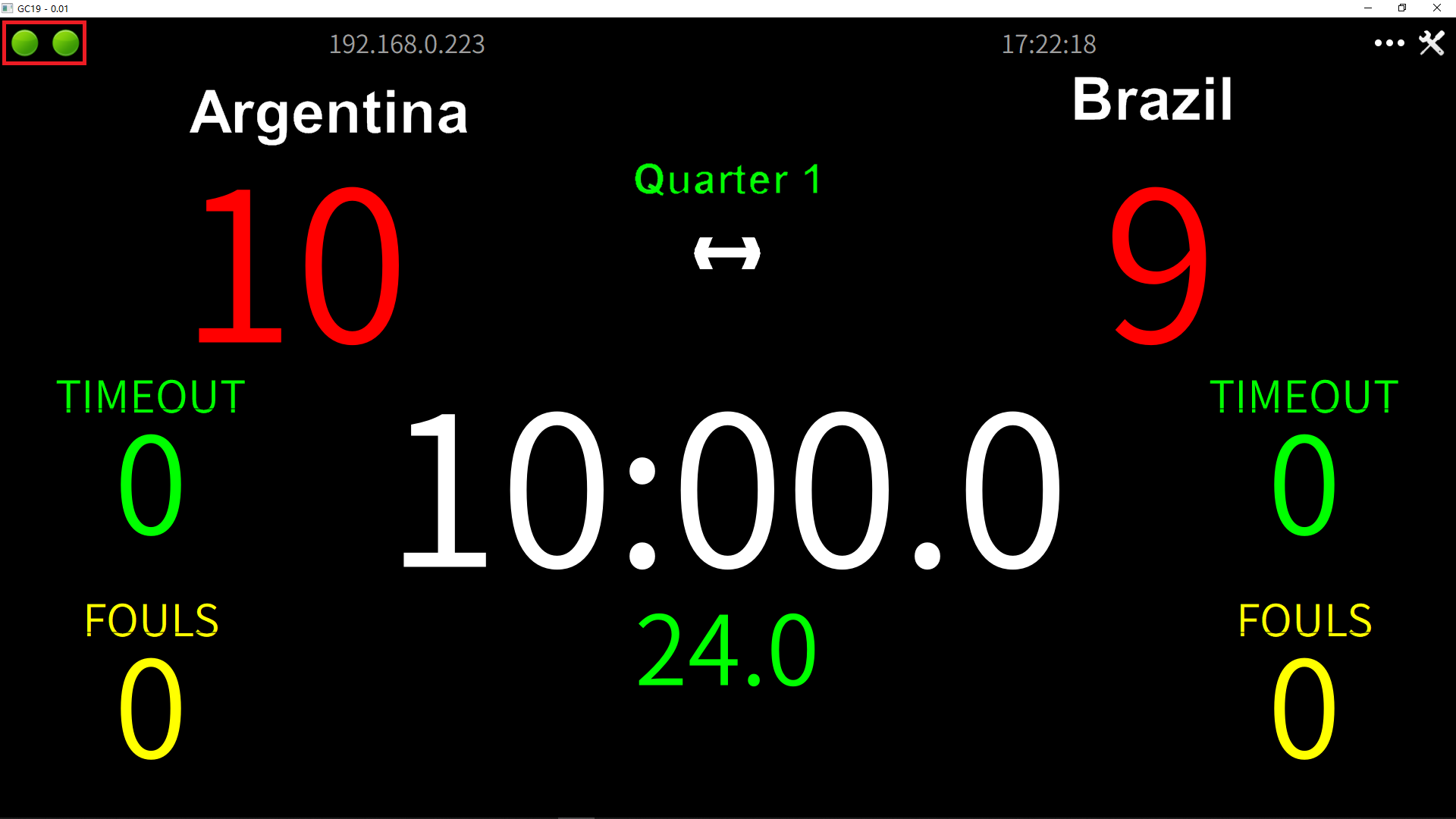

When the dots on the upper left corner are green, it indicates that the connection and working status are normal.
