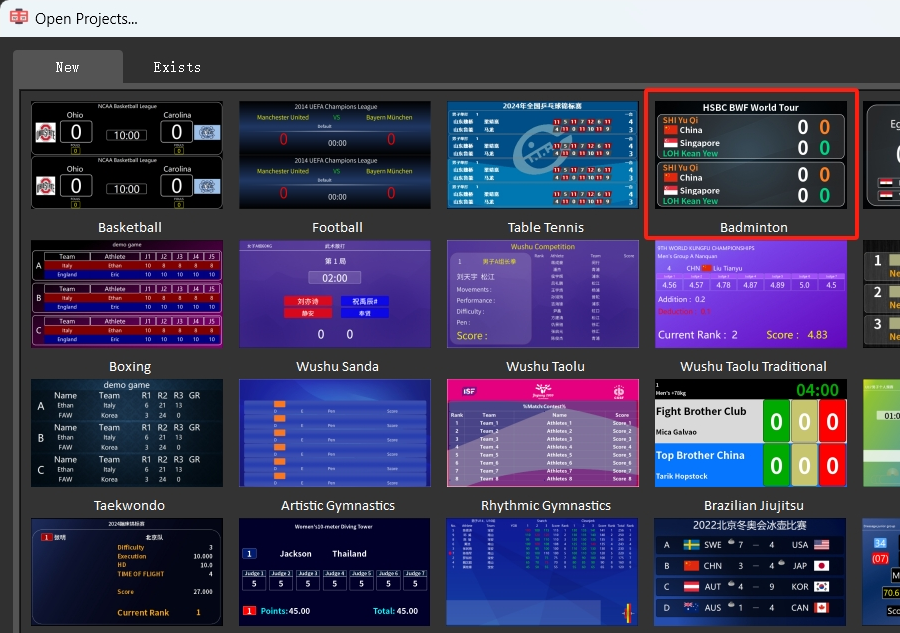

Open the “SCBViewer” software, select badminton (for example: badminton).

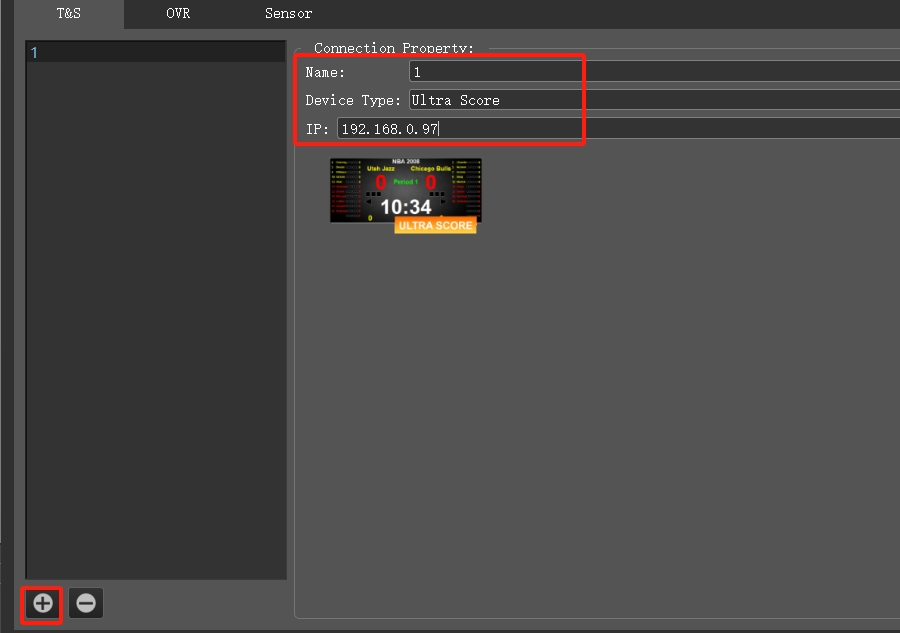

Click “Settings”, select “Connections Settins” button. Then click “+” button, the “Name” is recommended to fill in according to the court number. For the “Device Type” field, select “Ultras Score”. The “IP” enter the IP address of the scoring software computer to the court.

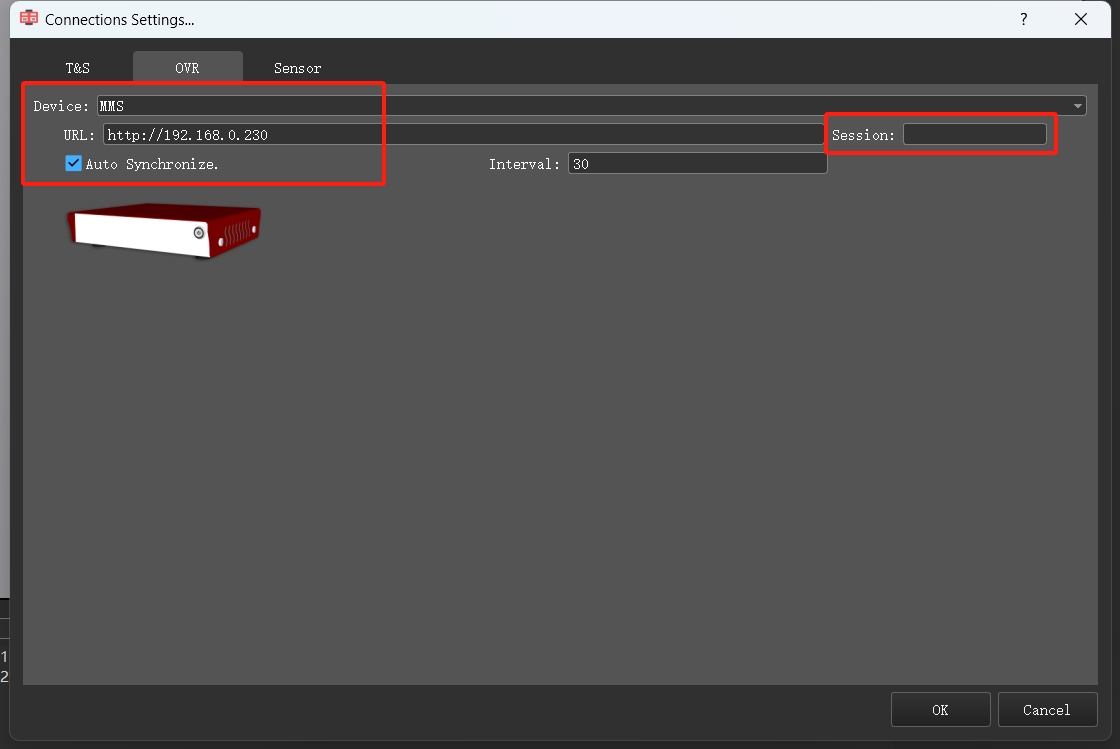

Click “OVR”, select “Device” as mms, and input the session with the match schedule number of the day, for example: A01.

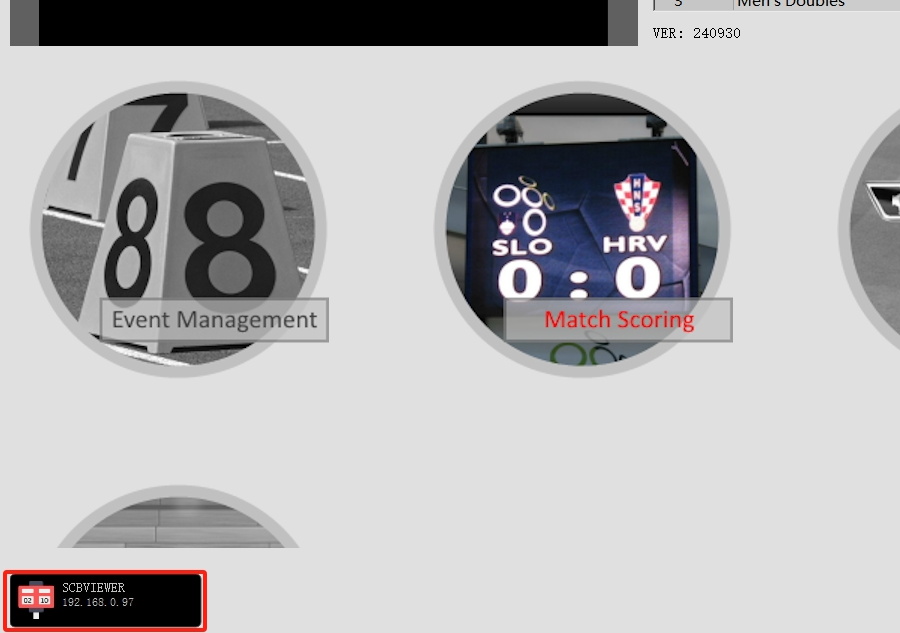

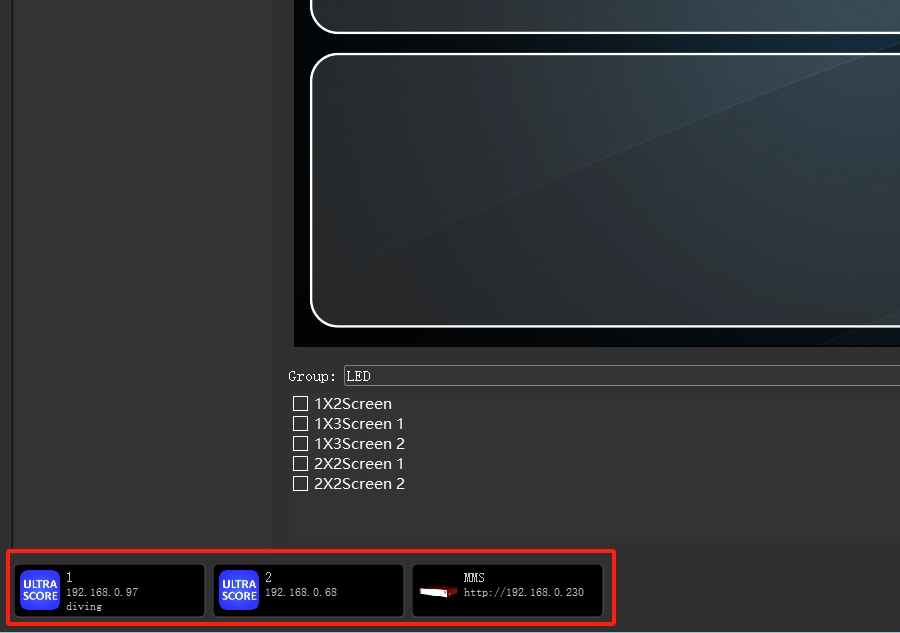

When the connection is successful, the scoring software icon will be displayed in the lower left corner. At the same time, the SCBViewer icon will also appear in the lower left corner of the scoring software.

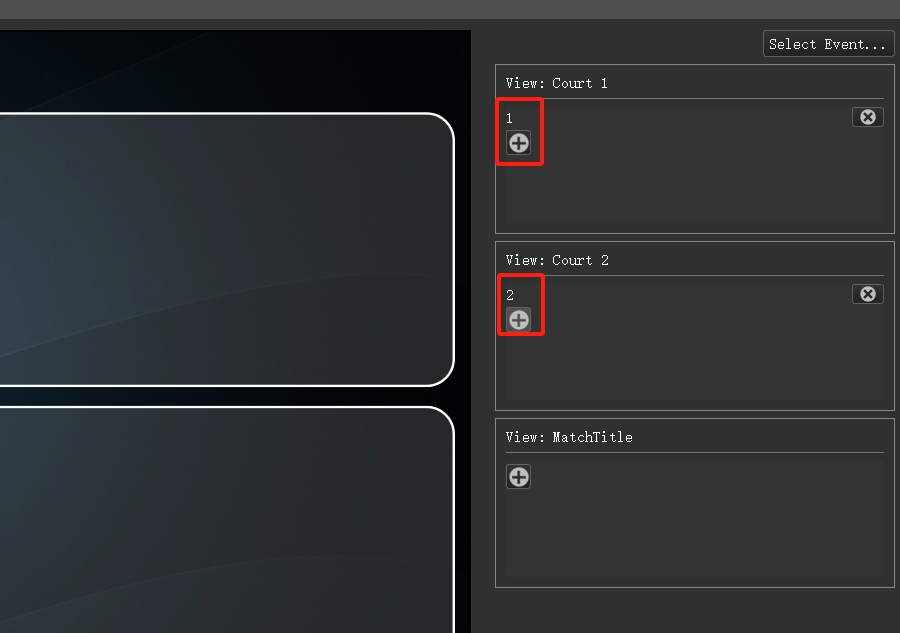

Click the “+” button, and select the name based on the court number.

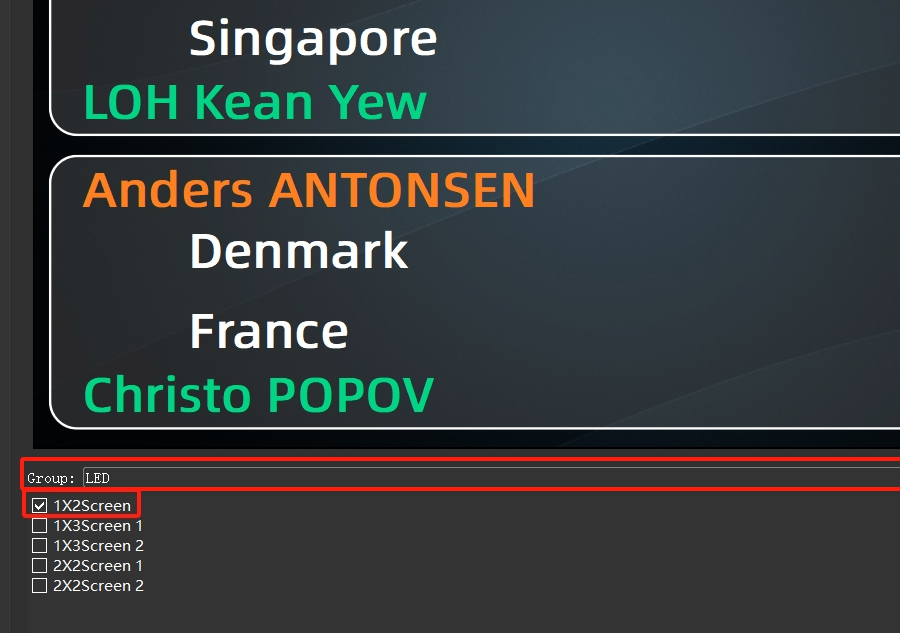

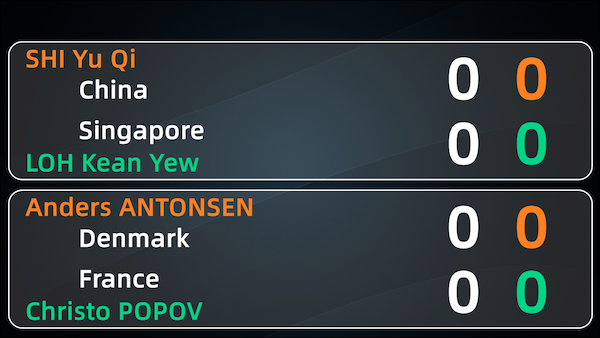

In the “Group”, select the athlete's LED, and check the screens that need to display multiple venue images on the LED screen. Then click “Play” and Press “F9 “button.

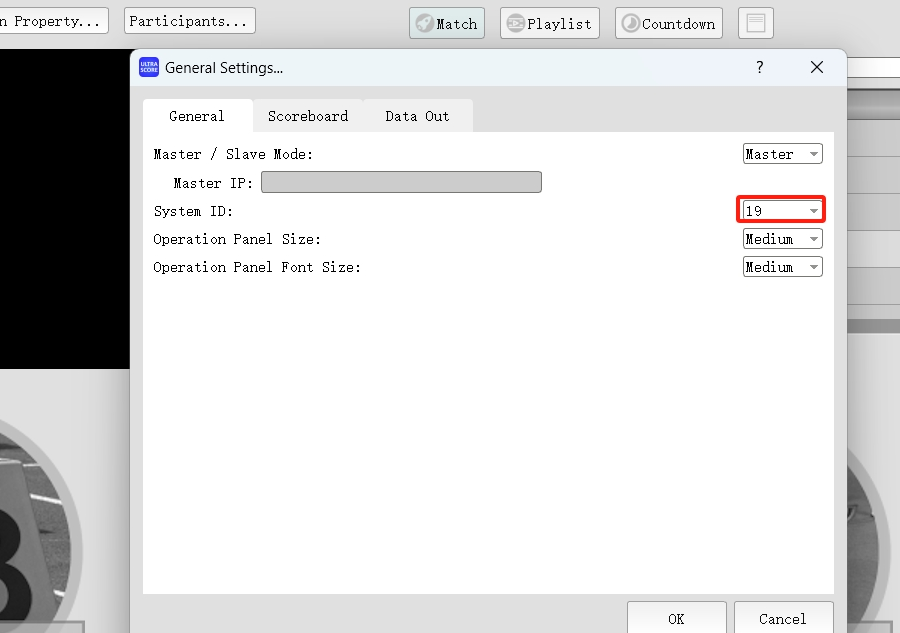

When the LED screen needs to display multiple games, it is necessary to set configure “System ID” for multiple scoring software computer. Click “Settings” button, select “General Settings” To select different ID numbers in the “System ID” for the scoring software.
