KS-PTCL Photocell Upgrade
Checking Version Information
Right-click the status bar at the bottom left and select Host Settings.
Check the Communication Host Version.
Connect the Photocell.
Click Photocell Settings.
Select the correct port number and click Connect.

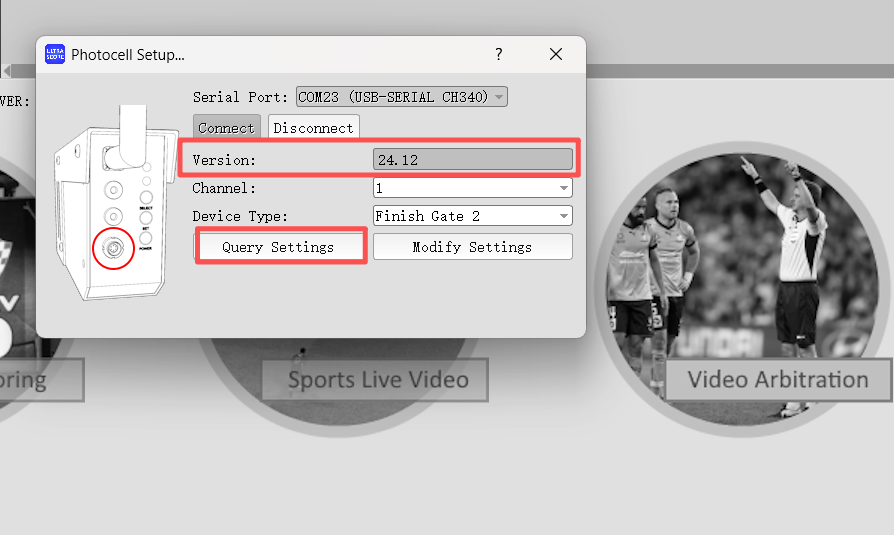

Click the “Query Settings” button to view the version information.

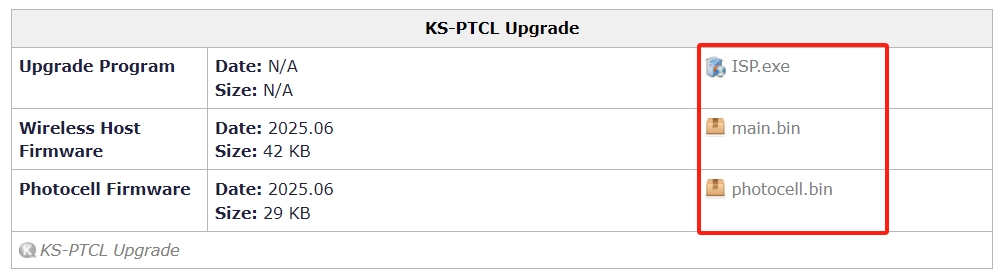

Download the following files.
http://www.kazovision.com/sports/ultrascore/devices/ks-ptcl
Wirless Host Firmware Upgrade
Use a Type-B cable to connect the computer to the communication host. Connect the power cable to the communication host and keep it powered off.

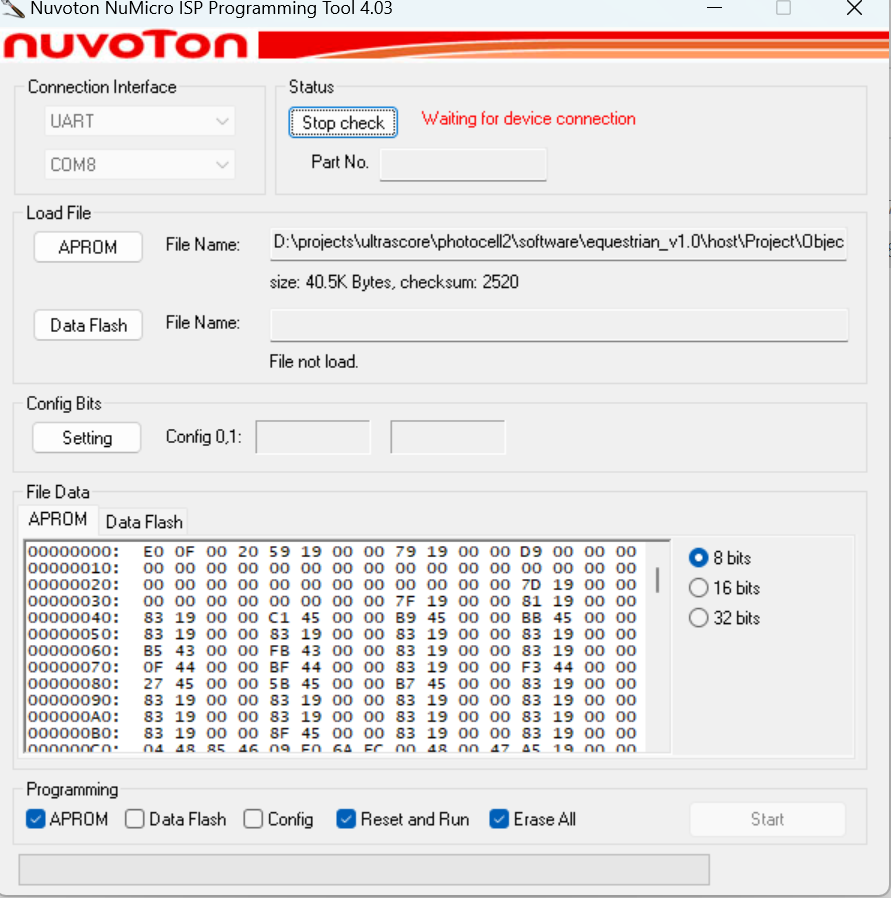

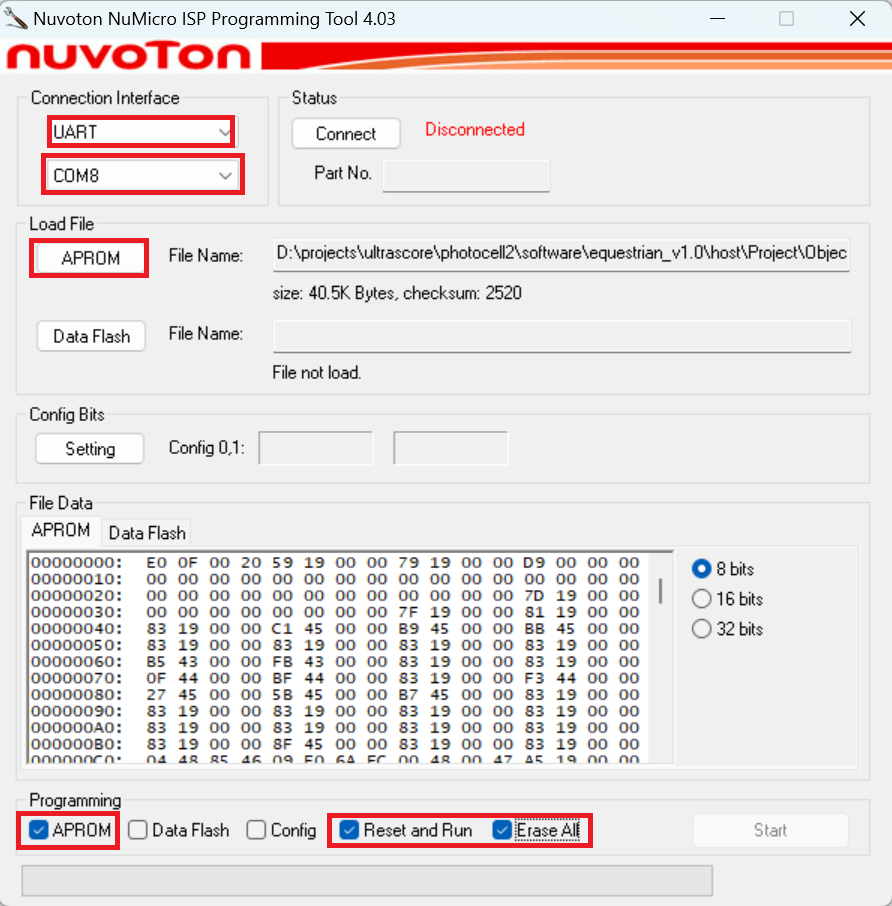

Open the upgrade software, select the “UART” and “COM” ports. Click the “APROM” button, select the upgrade document “main.bin”. Then check the following three options and click the “Connect” button.

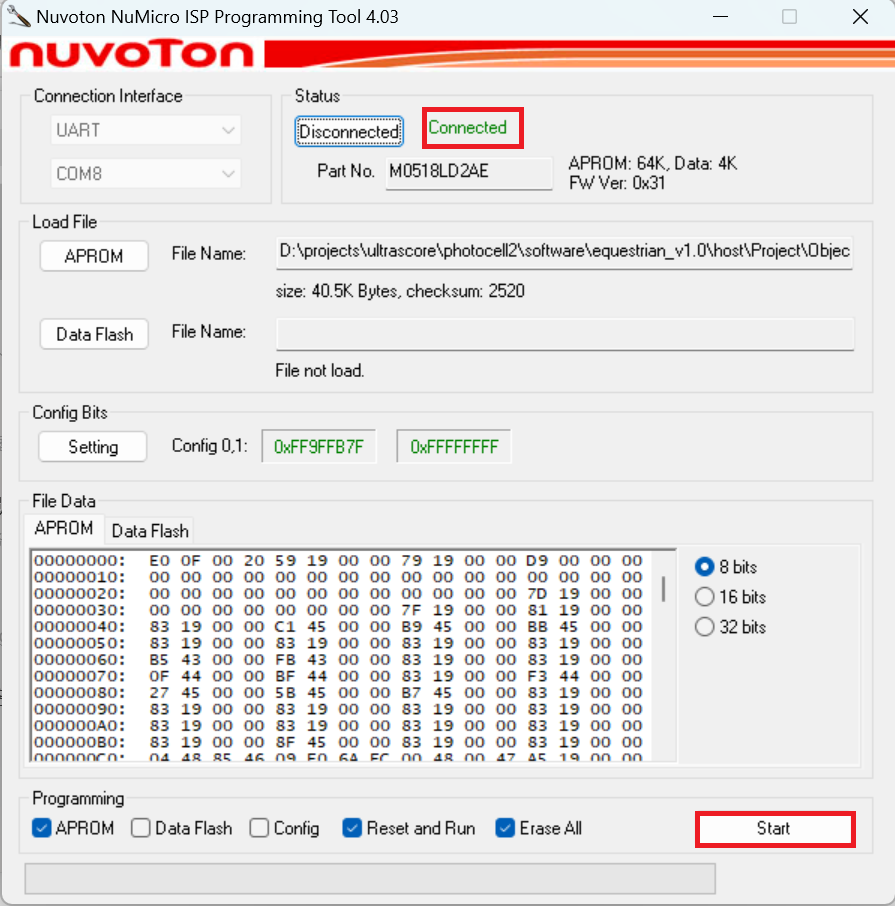

Turn on the host switch. When it shows “connected”, click the “Start” button.

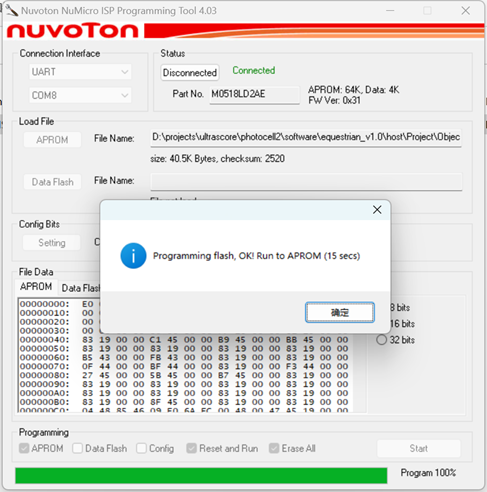

After the upgrade is complete, click the “OK” button.
Photocell Firmware Upgrade
You need to use a dedicated cable to connect the computer to the 6-pin interface of the light chopper, and keep the light chopper powered off.
Open the upgrade software, select the “UART” and “COM” ports. Click the “APROM” button, select the upgrade document “photocell.bin”. Then check the following three options and click the “Connect” button.
Turn on the photocell switch. When it shows “connected”, click the “Start” button.
After the upgrade is complete, click the “OK” button.
