Ultra Score Software is applied to the synchronous LED control system, which takes video signal (usually with HDMI port) as input and display the contents on the LED screen synchronously.
If you are not sure the LED screen is suitable, please download the evaluation program to test.

Steps
1. Install the Ultra Score software on the LED Control PC.

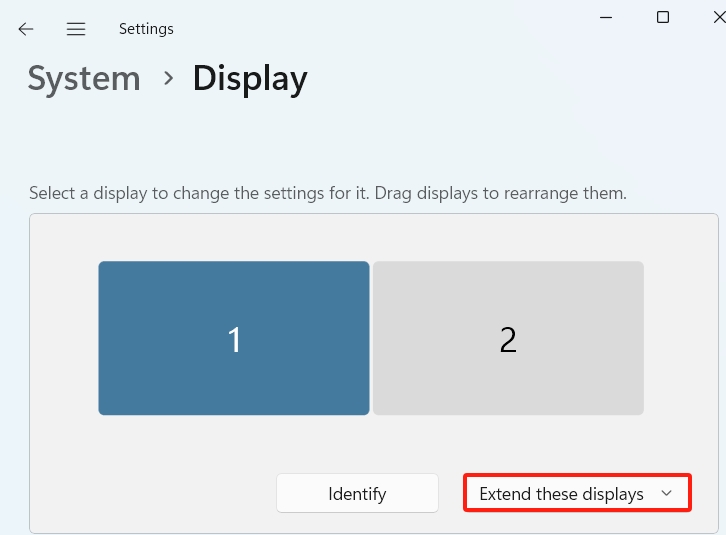

2. Right-click on the desktop to open the “Display settings” dialog box.
3. Select “Extend these displays” and save the settings.

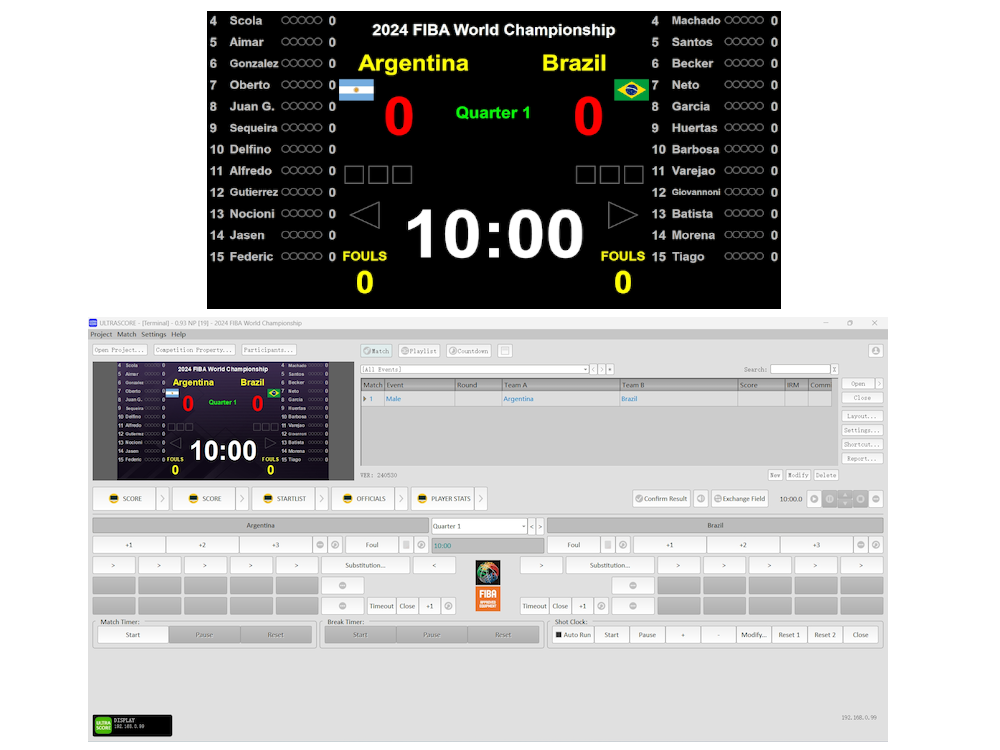

4. Running Ultra Score, the scoreboard will be shown on the 2nd display in full mode by default.
5. Make the 2nd display signal as an input of either video processor or LED controller.

Set the scoreboard window in as the same resolution as your LED screen. So every time you use this channel on the Video Processor, the scoreboard will be shown on the LED screen straight forward.

2. If the LED display shows an incomplete image, you can adjust it using the following two methods:

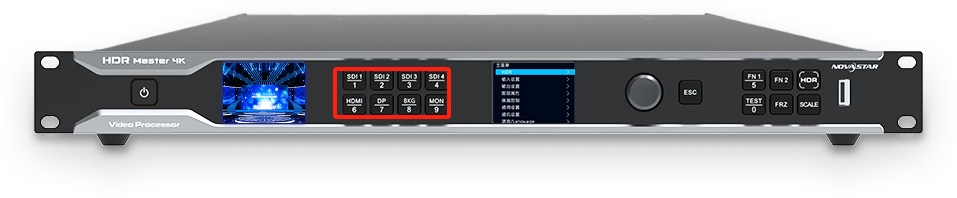

1. Open the video processor and select the input channel connected to Ultra Score.
2. Through the menu or control panel of the video processor, locate and enable the zoom function.
3. Adjust the zoom settings until the scoreboard from Ultra Score fully fits the output dimensions of the video processor, which typically means full-screen display.

In some cases, the software allows you to manually adjust the position of the content. By fine-tuning the content's left, top, width, and height positions, you can ensure that all important information is within the visible area.

When you are using the synchronous LED controller, the scoreboard displaying on the PC can be transmit onto the LED screen automatically.

Synchronous LED Screen use such kind of mechanism: it will cast a specified area from the input video signal onto the LED screen.

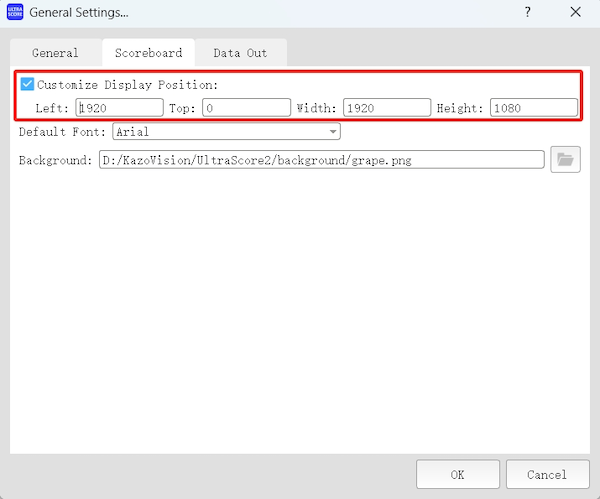

So what you will need to do is going to find out the position of this area. Usually you can find it from the LED control software. Input these parameters into Ultra Score, it will then display the scoreboard on the correct position, and show on the LED Screen.

Yes. We have network edition of Ultra Score program. Which can display the scoreboard on several PC in the same time. You may reference Ultra Score Solutions for details.

Yes. We can customize the software for you, make the scoreboard looks different on each screen. So for a small LED screen, not all information will be displayed.

In this case, you would need to use our display software. Install the player software on the computer that controls the LED screen. Then open display software

Right-click the mouse and select “Settings”.

Enter the IP address of the “Terminal” computer.
