There are three ways to connect to the meet management server. We primarily recommend using a switch connection method (with the router's LAN port IP gateway set to 192.168.0.1).

Connect PC and Meet Management Server to the LAN port on router with the network cable.

Check the gateway where the router is located. If the router's LAN port IP gateway is 192.168.0.1, no setup is required. If it is not, Open the browser and enter the login address on the back of the router to modify the lan port Settings. Make sure that the “IP Address” set as “192.168.0.1”.

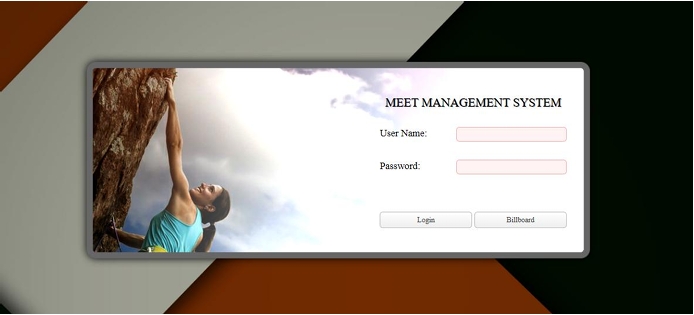

Type the “192.168.0.230” in the URL, here we will go to the login interface of Meet Management Server, which means connection is successful.

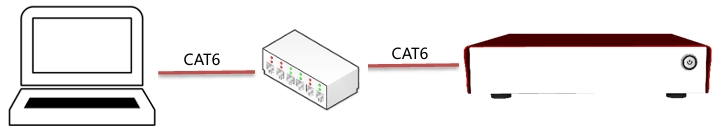

Connect PC and Meet Management Server to the switch.

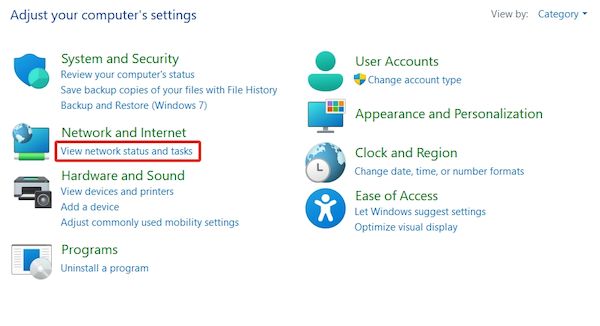

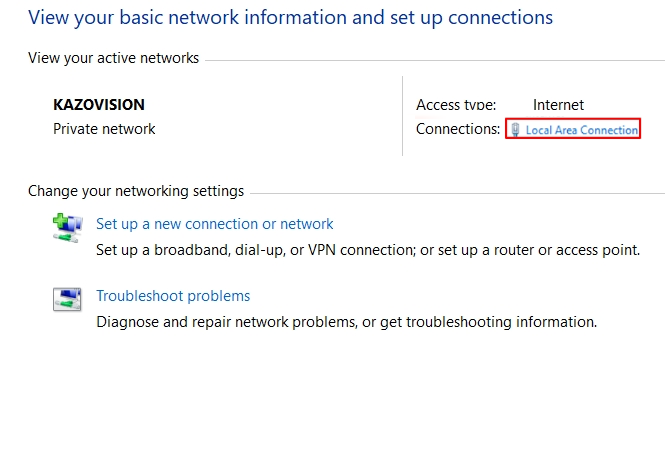

Open the “Control Panel” > “Network and Internet” > “Network and Sharing Center” > “Local Area Connection”.

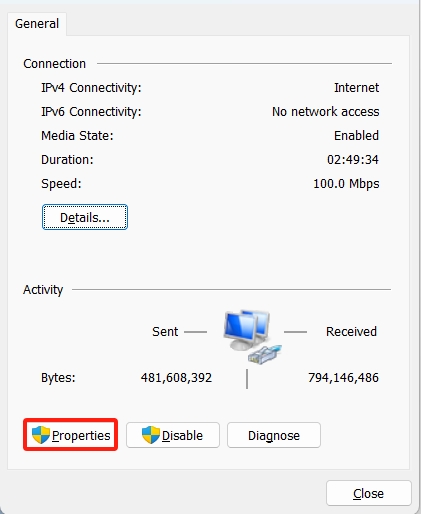

Click “Properties” to set IP address.

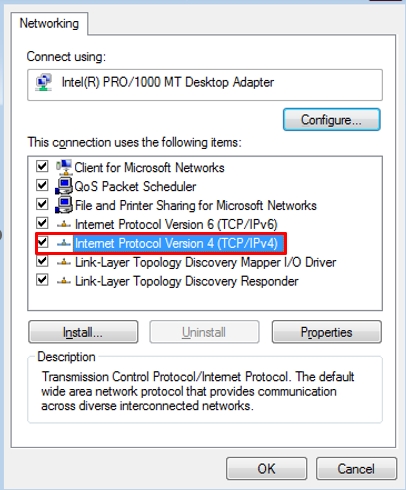

Double-click to open “Internet Protocol Version (TCP/IPv4)”.

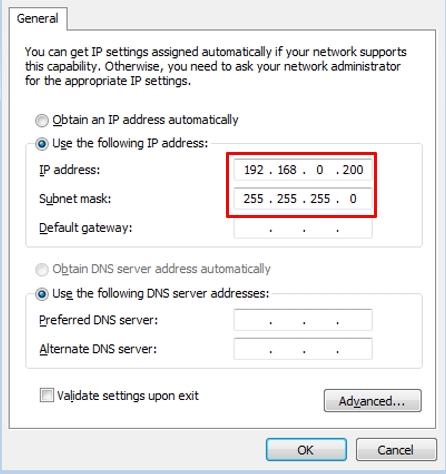

Select Manual to open IPv4, set the IP address as “192.168.0.200”. To distinguish it from the server's IP address.The subnet mask will acquire to the “225.225.225.0” automatically.

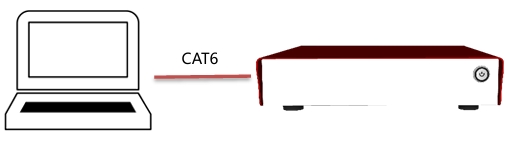

Connect the PC to the Meet Management Server within a network cable.

Open the “Control Panel” > “Network and Internet” > “Network and Sharing Center” > “Local Area Connection”.

Click “Properties” to set IP address.

Double-click to open “Internet Protocol Version (TCP/IPv4)”.

Select Manual to open IPv4, set the IP address as “192.168.0.200”. To distinguish it from the server's IP address.The subnet mask will acquire to the “225.225.225.0” automatically.

If you use the connect to the PC directly, only one computer can access the academic records server.
