Dressage Competition Process
Solution Introduction
In this solution, we will deploy two computers running Ultra Score, which operate synchronously in a master/slave device mode to share data.
The master is used to follow each athlete competing on the field and receive real-time scoring data from referees. This data is automatically synced to the slave device. Once the scoring data collection for the current athlete is completed, the master will immediately switch to the next athlete's competition session.
The slave device comes into use after the master finishes collecting scoring data. It is used for manual verification of referees' scores and confirmation of athletes' final results (such as score deductions). After the results are verified as correct, they will be submitted to the Meet Management Server.
The SCB Viewer software is used for information display on the on-site LED large screen. During an athlete's performance, it shows the countdown timer and the current athlete's information, including the athlete's name, horse name, team name, etc. During the intervals between athletes' performances, it displays the confirmed results of previous athletes.

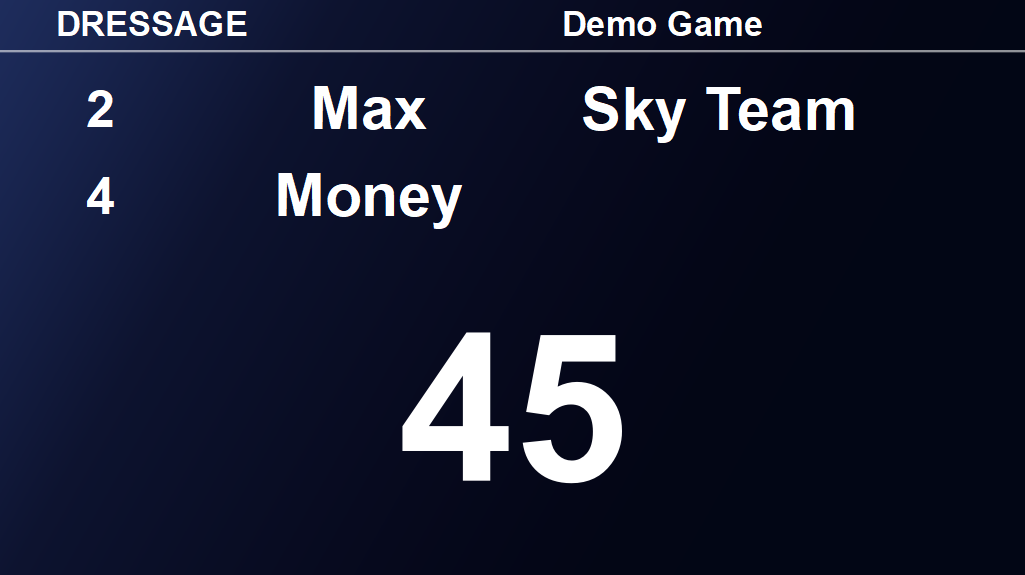

SCB Viewer displays the current athlete's real-time info screen.

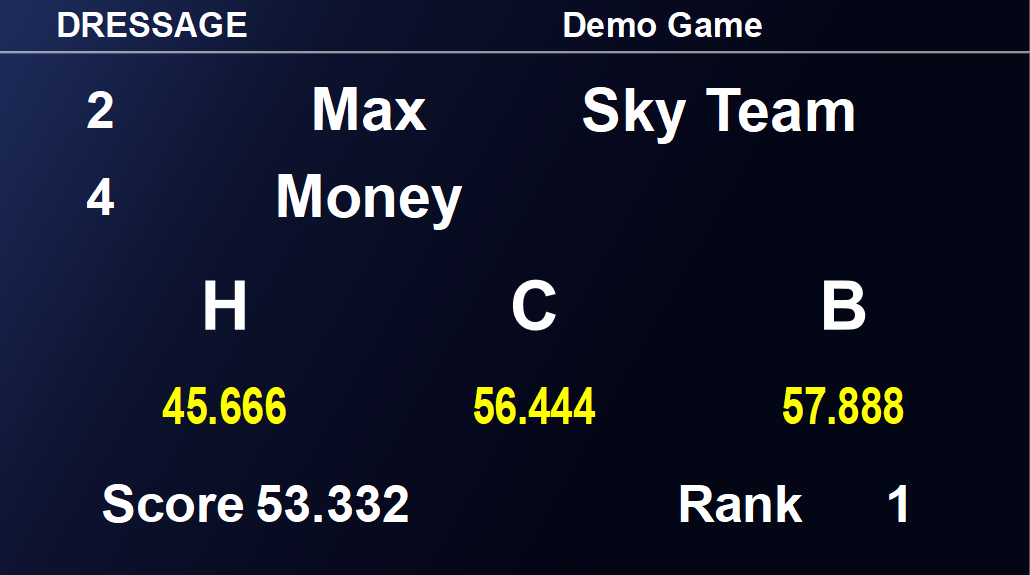

SCB Viewer displays the historical athletes' results interface.

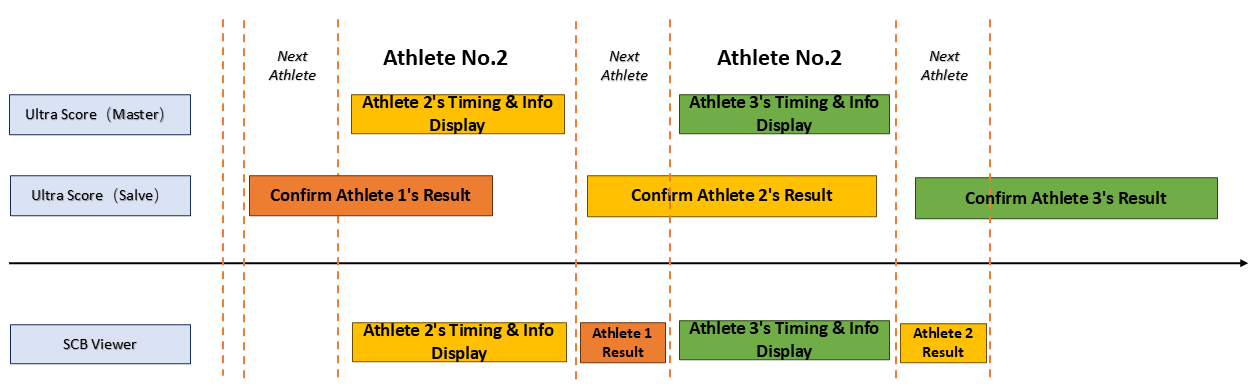

For detailed reference, see the figure below:

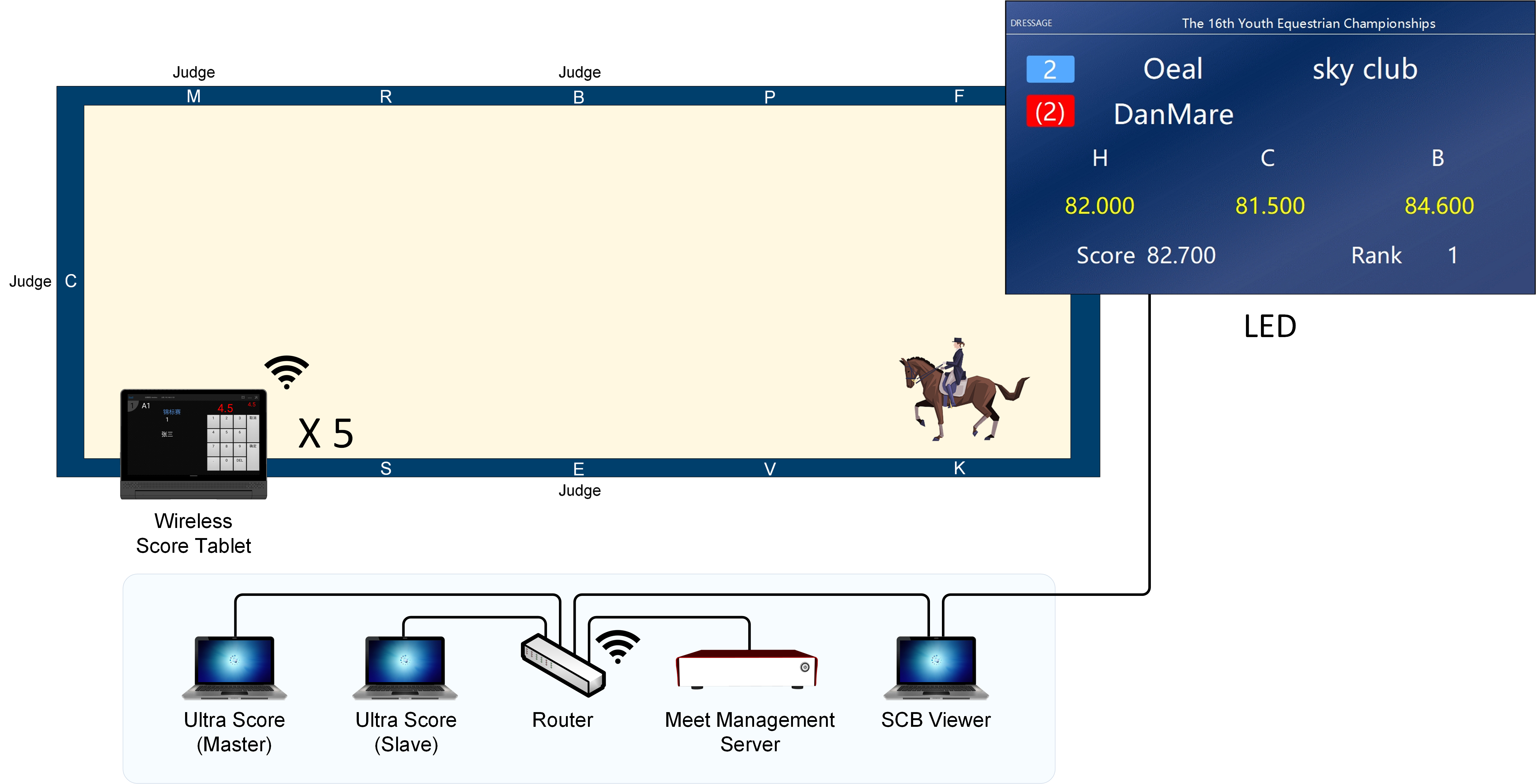

Device Connection
Connect the Ultra Score master, slave device, score display software, Meet Management Server, and scoring tablets to the router.
Notes
1. The Meet Management Server must be used for competition scheduling and data management.
2. The Ultra Score master/slave devices and the SCB Viewer software all need to be connected to the Meet Management Server to ensure they share consistent internal data.
3. Configure the master/slave mode for Ultra Score. For detailed operations, refer to: Ultra Score Master/Slave Setup
4. The tablets used by referees for scoring only need to be connected to the master.
